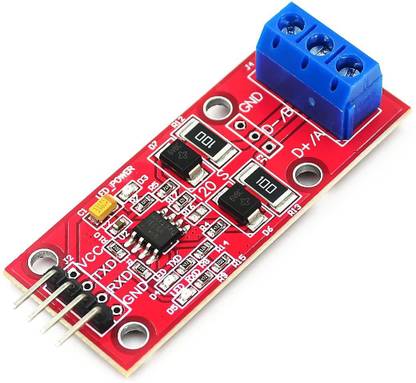

xcluma MCU TTL To RS485 Module 485 Serial UART Port Switching Control Flow Electronic Components Electronic Hobby Kit

• RS485, TTL signals of all single-sided cord, ensure signal quality, improve signal integrity • With 2.54 pitch hole plate welding holes, convenient for your secondary development • With M3 screw holes that are quite commonly used at present, easy and reliable installation • The working temperature of industrial grade chips can reach -40℃ to +85℃. • support 3.3V and 5V signal control system, compatibility stronger • With 120Ω termination resistance, short-circuit R16 to enable termination resistance • All chips are guaranteed to be imported industrial-grade chips, and the ultra-long-distance transmission can reach thousands of kilometres. • ESD protection with plus or minus 15KV • The chip has a limited slew rate driver to minimize EMI and reduce signal reflections caused by improper terminal matching cables, so that the error-free signal transmission rate is as high as 500Kbps. • The input impedance of the receiver with 1/4-unit load supports multi-machine communication and allows connection to a bus of up to 128 devices. • This module can be hot-swapped, and there will be no signal bolting phenomenon caused by hot-plugging of other 485 chips. • The power supply uses chip tantalum electrolytic capacitors, and double capacitors are used for high and low frequency power supply filtering. • Using dual transient suppression diodes, the overvoltage protection performance is better. • Use 10Ω current protection resistors, patch design to improve 485 signal integrity. • With terminals and welding lead holes, it is convenient to debug and finalize the wiring. • Welding leads can improve signal reliability • Large area copper laying to prevent signal interference • With power supply and RXD, TXD signal indicator, the receiving and sending status can be seen at glance • Lead-out pin is easy to test
