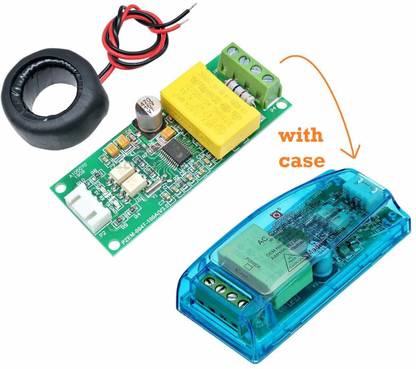

xcluma PZEM-004T PZEM 004T v3.0 with case AC 80~260V 100A Power Energy amp Voltage Monitor Meter Communication Module with CT Coil Electronic Components Electronic Hobby Kit

• ZEM-004T PZEM 004T v3.0 with case; 1. electrical parameter measurement function (voltage, current, active power). 2. The power button clear function. 3. Power-down data storage function (cumulative power down before saving). 4. PC PC display function (display voltage, current, active power). 5. The serial communication function (comes with TTL serial interface, via various terminals communicate with the adapter plate, read, and set the parameters). • 1. Power: meas range 0 ~ 22kW 0 ~ 10kW within display format of 0.000 to 9.999; Within 10 ~ 22kW display format 10.00 ~ 22.00. 2. Power: measrange 0 ~ 9999kWh 0 ~ 10kWh within display format of 0.000 to 9.999; 10 ~ 100kWh within display format of 10.00 to 99.99; 100 ~ 1000kWh within display format of 100.0 to 999.9; 1000 ~ 9999kWh and above display format from 1000 to 9999. 3. Voltage Range 80 ~ 260VAC Display Format 110.0 ~ 220.0. 4. Current meas range 0 ~ 100A Display Format 00.00 to 99.99. • Electricity clear method: Press ZERO key five seconds, then release the button! Press again to clear the key, the data is cleared and exit charge cleared, cleared so far completed.>>Serial Communication if you want a device with a USB or RS232 (such as computers) to communicate, then you need to be equipped with different TTL adapter hardware board (USB communication needs with TTL to USB adapter plate; • 1. Connect the hardware according to the wiring diagram. 2. Connect the line after a good first select the communication port of the PC software module supports communication port COM2 \ COM3 \ COM4, through the Device Manager to view, if not more than a few ports you need to modify the port over. E. Considerations 1. This module is suitable for indoor, not outdoor use. 2. the applied load should not exceed the rated power. 3. The wiring can not be wrong. • 1. Working voltage: 80 ~ 260VAC 2. Test voltage: 80 ~ 260VAC 2. Rated power: 100A / 22000W 3. Working Frequency: 45-65Hz 4. Measurement accuracy: 1.0
