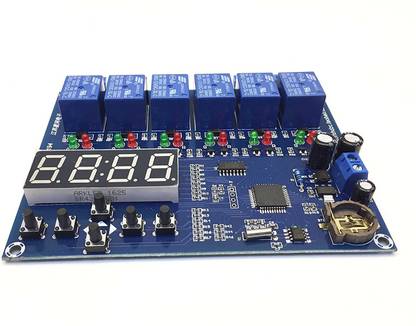

xcluma XH-M194 5WAY Timer Relay Control Module Electronic Components Electronic Hobby Kit

• Model: XH-M194 The motherboard power supply: AC/DC12V The output type: 250V/10A (Max) relay output Appearance Size: 120 * 93 * 19 mm installation empty diagonal 113 * 83 mm Screen size: 50 * 19 mm Timing accuracy: 1 min • This module can control five way independent relay and one way all Relay Output normally open or Normally closed This module is applied to motor control, water pump control, the control of the boiler, etc. • METHOD OF USE: Sets the system time: enter P006, set the time. If you have already set up can ignore time steps Open the first channel: press set button to enter P01, change to NO Set H1 and H2: after set, press the return key to exit 6 relay for total output, that is, from 1 to 5 any relays closed, then the sixth followed closed! • KEYS: Press once to enter menu P001 - P007 Move to the left, setup time effectively Moves to the right, set a time effective Click a return to the higher level menu Up-Key: increase in the currently displayed value, setting time, menu available at the time Down-Keys: reduce the currently displayed value, setting time, menu available at the time
