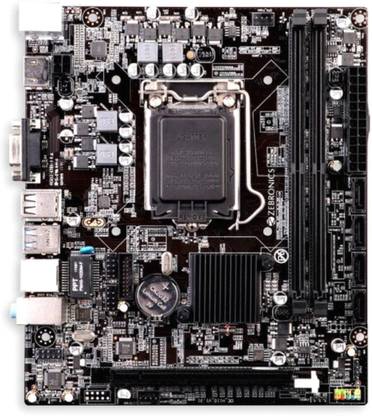

ZEBRONICS Zeb G41 D3S Motherboard LGA 775 Socket LGA 775Socket Micro-ATX Intel G41 Chipset DDR3 Motherboard for Desktop, Workstation
Price: Not Available
Currently Unavailable
2 Year Manufacturing WarrantyKnow More
Highlights
- Suitable For Desktop, Workstation
- Intel G41
- Data Rate DDR3
- Maximum RAM Capacity 8 GB
- Form Factor: Micro-ATX
Description
Supported CPU Intel Core 2 Quad/ Core 2 Duo/ Pentium Series/ Celeron Series Processor North Bridge - Intel G41 Chipset South Bridge - Intel ICH7 Chipset Memory supported 2 DDR3 dual-channel RAM slots, Memory up to 8GB ( Double Bank RAM) Supports DDR3 800/1066MHz memory, 2 x DIMM Slots BIOS AMI BIOS I/O Interface 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 xVGA Port, 1 xCOM port, 4 x USB 2.0 ports, RJ45 LAN port, 1 x 3-in-1 audio jacks Onboard interface 1 x Front panel connector,1 x Front audio connector, 2 x USB 2.0 Connector, 4 x SATA Ports, 1 x 1 IDE slot,1 x 4 pin CPU fan connector, 1 x 24-pin ATX power connector, 1 x SYS Fan Connector, 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header Integrated LAN Supports RTL8105E 10/100 Mbps Ethernet LAN Expansion slot 1 PCI Express x16 slot, 1 PCI Slot Form factor Mirco-ATX
Read More
Specifications
Back Panel Ports
| USB 2.0 Ports, Controller |
|
| VGA/D Sub Ports |
|
| Audio I/O Channels |
|
| RJ-45 Ethernet Jacks |
|
In The Box
| Sales Package |
|
General Features
| Support CDs |
|
| OS Support |
|
| BIOS |
|
| Advanced Technologies |
|
| Advanced Features |
|
Warranty
| Domestic Warranty |
|
| International Warranty |
|
| Warranty Summary |
|
| Covered in Warranty |
|
| Not Covered in Warranty |
|
| Warranty Service Type |
|
Memory
| Number of Memory Slots |
|
| Memory Configuration |
|
| Memory Frequency |
|
Essentials
| Form Factor |
|
| Socket Type |
|
| Compatible Processors |
|
| Chipset |
|
| Chipset Manufacturer |
|
Graphics
| Integrated Graphics card |
|
| External Graphics Card Support |
|
Storage
| RAID Controller |
|
Expansion Slots
| PCI Slots |
|
| PCIe x1 Slots, Generation |
|
| PCIe x16 Slots, Generation |
|
General
| Brand |
|
| Series |
|
| Model ID |
|
| Designed For |
|
| Color |
|
| Capacity |
|
| Key Features |
|
Connectivity
| Ethernet Controller |
|
| Ethernet Card |
|
| Ethernet Features |
|
| Number of Printer Ports |
|
| Number of Com Ports |
|
| Wireless and Bluetooth |
|
Audio
| Audio Channels |
|
| Audio Features |
|
Internal I/o Headers
| USB 2.0 Headers |
|
| ATX Power Connectors |
|
| Fan Headers |
|
| Other Connectors |
|
Questions and Answers
Q:This motherboard can supported 2*2gb 1333mhz ddr3 ram
A:yes
maheswari traders
Flipkart Seller4
0
Report Abuse
Q:it's support C2D E8500 Processor?
A:Yes, it support C2D E8500. Best processor to pair with this mobo is Q9400, GT1030 ddr5 graphic and two 4gb ram stick do u can get total of 8gb ram for max performance.
Tridip Narzary
Certified Buyer12
5
Report Abuse
Q:can I use AMD A6 processor
A:no
Gourav Verma
Certified Buyer5
2
Report Abuse
Q:Can I pair GT 730 ?
A:Yes u can…even I’m using 710 ddr 5
Umashankar Mishra
Certified Buyer3
2
Report Abuse
Q:Does this motherboard support p4 processor
A:No
HSCOMPUTER
Flipkart Seller4
3
Report Abuse
Q:Use android studio
A:no
Anonymous
Certified Buyer2
1
Report Abuse
Q:2 tb hdd support ?
A:Yes.
GuptaComputerCare
Flipkart Seller3
2
Report Abuse
Q:I3 or i5 processors
A:No
TSREnterprise
Flipkart Seller1
0
Report Abuse
Q:Can it supports i3 or i5 processors
A:No
TSREnterprise
Flipkart Seller1
0
Report Abuse
Q:Can I use 4tb hard drive internal hard drive for this motherboard
A:No
TSREnterprise
Flipkart Seller0
0
Report Abuse
