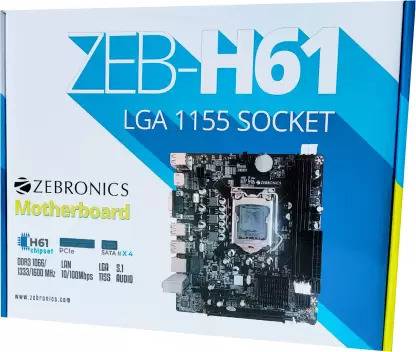

ZEBRONICS Zeb-H61 Motherboard LGA1155 Socket Micro ATX DDR3 LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

2 YearsKnow More

Highlights

Suitable For Desktop
Intel H61
Data Rate DDR3
Maximum RAM Capacity 8 GB
Form Factor: Micro-ATX

Description

Processor support : Supports Intel i7/i5/i3/Pentium/Celeron processors in LGA1155 Chipset : Intel H61Chipset Memory support : 2 DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory LAN : Supports Realtek 8105E/8111E 100/1000 Mbps Audio : Realtek 662 3xAudio Jacks for 6 channel High definition audio Back panel : 1 PS/2 mouse/keyboard port, 1 VGA port, 1HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks On-Board connectors : 1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports, 4 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header Slots : 1 PCI Express x16 slot, 1 PCI Express x1 slot

Specifications

In The Box

Sales Package

General

Brand	ZEBRONICS
Model ID	Zeb-H61 Motherboard LGA1155 Socket Micro ATX DDR3

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155
Chipset	Intel H61
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	2 Slots
Memory Configuration	8 GB DDR3 2 DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory DDR3
Memory Frequency	1066/1333/1600 MHz

Graphics

Integrated Graphics card	Intel
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek 662 3xAudio Jacks for 6 channel High definition audio
Audio Channels	6
Audio Features	Realtek 662 3xAudio Jacks for 6 channel High definition audio

Connectivity

Ethernet Controller	Supports Realtek 8106E 10/100 Mbps
Ethernet Card	Supports Realtek 8106E 10/100 Mbps
Ethernet Features	Supports Realtek 8106E 10/100 Mbps

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1
PCIe x16 Slots, Generation	1

Internal I/o Headers

ATX Power Connectors	1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 PS/2 mouse/keyboard port, 1 VGA port, 1HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks, 1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports, 4 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header

Back Panel Ports

USB 2.0 Ports, Controller	4
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	2
RJ-45 Ethernet Jacks	1

General Features

Support CDs	Drivers CDs
OS Support	Windows 7, Windows 8, Windows 10
Advanced Technologies	Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155
Advanced Features	Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155

Warranty

Warranty Summary	2 Years
Covered in Warranty	Yes
Not Covered in Warranty	DAMAGE
Warranty Service Type	SERVICE CENTER
