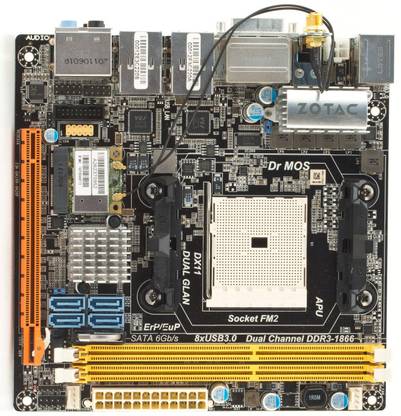

ZOTAC A75ITX-B-E FM2Socket Mini-ITX AMD A75 Chipset DDR3 Motherboard for Desktop, Workstation

Price: Not Available

Currently Unavailable

Warranty

1 Year Domestic (India) Limited Warranty

Highlights

Suitable For Desktop, Workstation
AMD A75
Data Rate DDR3
Maximum RAM Capacity 16 GB
Form Factor: Mini-ITX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	0
USB 3.0 Ports, Controller	6
eSATA Ports, Controller	0
HDMI Ports	1
IEEE 1394a Ports	0
DVI Ports	1
VGA/D Sub Ports	0
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	0 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2
PS/2	1

In The Box

Sales Package

Motherboard, Cables and Connectors, Quick Setup Guide, Driver CD/DVD, IO Plate (Metal), DVI to VGA Convertor

General Features

Processor Clock Speed	upto 4.1 GHz
Overclocking	CPU Dependent
Hardware Monitoring	CPU/System temperature detection, CPU/System fan speed detection, CPU/System fan speed control
Support CDs	Drivers
OS Support	Support for Windows® 7 32/64-bit, Support for Windows® 10 32/64-bit, Support for Windows® XP 32/64-bit
BIOS	Standard BIOS
Advanced Technologies	RAID 0, 1, 0+1 support, PCI Express x16 slot, 802.11n WiFi, Bluetooth 4.0, Multi-core processing with up to 384 AMD Radeon™ cores.
Advanced Features	Microsoft® DirectX® 11, World-class high-definition Blu-ray and streaming Internet video playback., PCI Express x16 slot, USB 3.0 ports, Bluetooth 4.0, Dual Gigabit Ethernet

Warranty

Domestic Warranty	1 Year
International Warranty	0 Months
Warranty Summary	1 Year Domestic (India) Limited Warranty
Covered in Warranty	Manufacturing defects only by replacement or repair
Not Covered in Warranty	Accidents, fire, water or damage caused by repairs or upgrades attempted by any unauthorized person or other third-party accessories that are attached to the device. Any acts of nature or external forces are expressly not covered.
Warranty Service Type	NA

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 GB DDR3 Dual Channel DDR3 SDRAM
Memory Frequency	1866 MHz
ECC Support	Non-ECC
Buffered Memory	Yes

Dimensions

Dimensions	200 x 70 x 205 mm
Weight	794 g

Essentials

Form Factor	Mini-ITX
Socket Type	FM2
Compatible Processors	AMD A4-Series, AMD A6-Series, AMD A8-Series, AMD A10-Series
Chipset	AMD A75, AMD A75
Chipset Manufacturer	Advanced Micro Devices, Inc. (AMD)

Graphics

Integrated Graphics card	As per CPU
External Graphics Card Support	Yes
Side Port Memory	64 MB

Storage

SATA 1.5 Gb/s	0
SATA 3 Gb/s	0
SATA 6 Gb/s	4, A75
RAID Controller	RAID 0, 1, 0+1
RAID Configurations	0, 1, 0+1
PATA Ultra DMA	0, 0

Expansion Slots

PCI Slots	0
PCIe x1 Slots, Generation	0
PCIe x2 Slots, Generation	0
PCIe x4 Slots, Generation	0
PCIe x8 Slots, Generation	0
PCIe x16 Slots, Generation	1
Mini PCIe Slots	0

General

Brand	ZOTAC
Series	WiFi b Series
Model ID	A75ITX-B-E
Designed For	Desktop, Workstation
Color	Black
Capacity	16 GB
Key Features	10/100/1000Mbps LAN, High Definition Audio

Connectivity

Ethernet Controller	Gigabit Ethernet
Ethernet Card	10/100/1000
Ethernet Features	10/100/1000, 802.11n
Number of Printer Ports	0
Number of Com Ports	0
Wireless and Bluetooth	802.11n and 4.0

Audio

Audio Codec	Realtek® HD Audio Codec
Audio Channels	5.1

Internal I/o Headers

SATA 1.5 Gb/s Headers	0
SATA 3 Gb/s Headers	0
SATA 6 Gb/s Headers	4
IEEE 1394a Headers	0
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	Clear CMOS
VGA/Dsub Connectors	0
