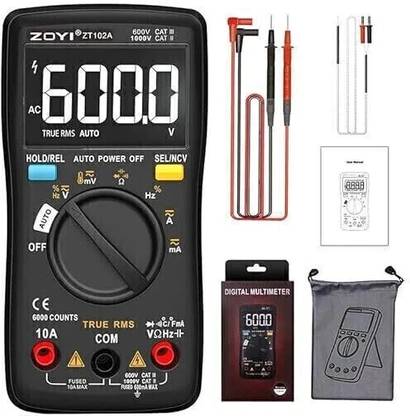

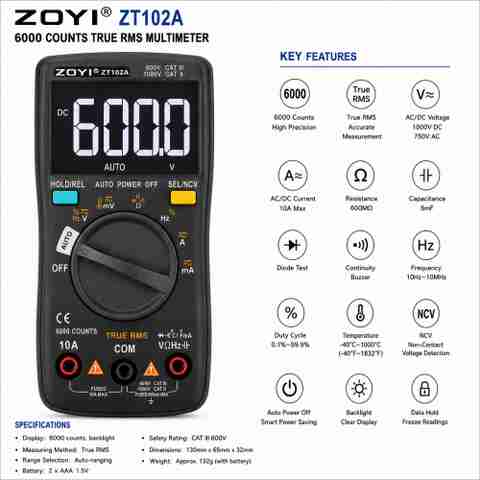

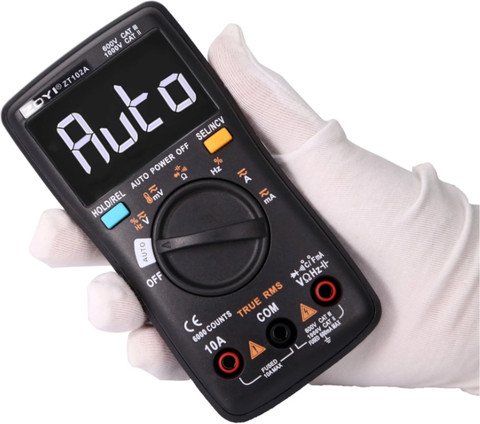

Zoyi ZT-102A Digital Multimeter (Black 6000 Counts)

4.5

6 Ratings & 1 Reviews

₹2,100

₹4,750

55% off

Available offers

Bank Offer5% cashback on Flipkart Axis Bank Credit Card upto ₹4,000 per statement quarter

T&C

Bank Offer5% cashback on Axis Bank Flipkart Debit Card up to ₹750

T&C

Bank Offer10% off up to ₹1,500 on BOBCARD EMI Transactions of 6 months and above tenures, Min TxnValue: ₹7,500

T&C

Bank OfferFlat ₹10 Instant Cashback on Paytm UPI Trxns. Min Order Value ₹500. Valid once per Paytm account

T&C

Delivery

Check

Enter pincode

Delivery by28 Jul, Monday

View Details

Highlights

Material: Plastic
Display Type: LCD
DC Voltage: 60.00mV/600.0mV/6.000V/60.00V/600.0V/1000V, ±(0.5%+3)
Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ ±(0.5%+3), 60.00MΩ ±(1.5%+3)
Technology Used: True RMS: This technology ensures accurate readings of AC signals, even if they are not purely sinusoidal., Auto-Ranging: The multimeter automatically selects the appropriate measurement range, simplifying usage and minimizing the need for manual adjustments., 6000-Count LCD Display: Provides a clear and detailed digital display for easy reading of measurements., AC/DC Voltage, Current, Resistance, Capacitance, and Frequency Measurement: The multimeter can measure a wide range of electrical parameters, Temperature Measurement: Includes the ability to measure temperatures using a thermocouple., Continuity Test: Detects if a circuit is continuous., Diode Test: Measures the forward voltage drop of a diode., Smart Mode (Auto Mode): Automatically selects the appropriate measurement function based on the input signal, simplifying operation., Other Features: Includes features like low battery alert, auto power off, data hold, and backlight for enhanced usability.

Services

Cash on Delivery available
?

Seller

HappyConsumers

(Not Enough Ratings)

7 Days Return Policy
?

See other sellers

Specifications

General

Brand	Zoyi
Model Number	ZT-102A
Type	Digital
Display Type	LCD
Color	Black
Material	Plastic
Primary Functions	ZOYI ZT-102A is an affordable digital multimeter with a light screen and a thermocouple,a portable tool for new users， students, electricians, and maintenancers.,CAT Ⅲ 600V, good price multimeter that includes useful functions.You can get all the measurements for:, AC/DC CURRENT, AC/DC VOLTAGE, RESISTANCE, CONTINUITY, DIODE, CAPACITANCE, FREQUENCY, DUTY CYCLE, TEMPERATURE, LOW BATTERY ALERT, AUTO POWER OFF, AUTO MODE, HOLD, BACKLIGHT, TRUE-RMS
Number of Counts	6000
Model Name	ZT-102A
Brand Color	MULTICOLOUR
LED Indicators	Yes
Operating Temperature	253.15K TO 1273.15K
Audible Continuity Test	Yes
Buttons	NCV, SELECT, Hold Button, RELEASE, Rotary Switch
Display Size	2.5 INCHES DIAGONALLY
Data Freeze	Yes

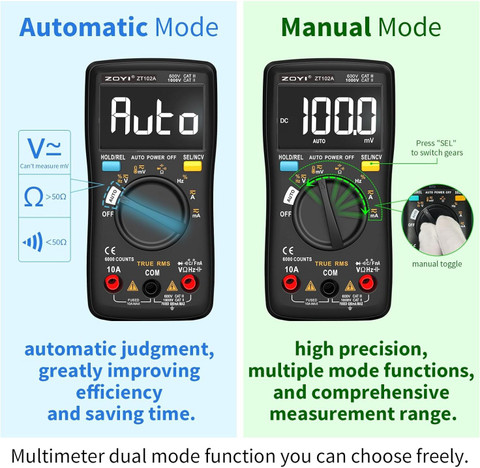

Autoranging	Yes
Reading Storage	Yes
Backlight	Yes
PC Connectivity	No
Net Quantity	1

Power Features

Battery Type	2 x 1.5V AAA Battery
Number of Batteries	2

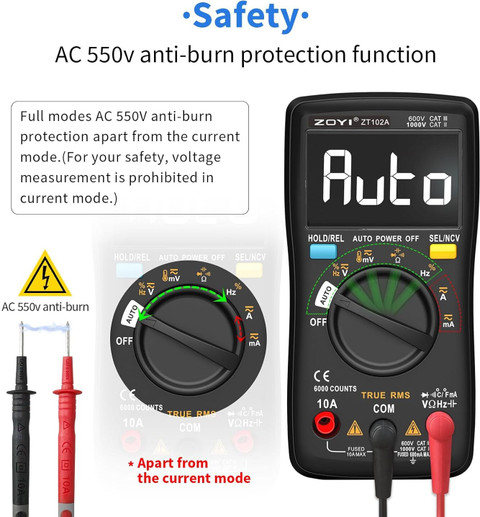

Other Power Features	Auto Power Off (APO): ~15 mins inactivity., Low battery alert, Safety Rating: CAT III 600V.

Functions

AC Current	60.00mA/600.0mA/6.000A/10.00A ±(1.5%+3)
DC Current	60.00mA/600.0mA/6.000A/10.00A ±(1.2%+3)
AC Voltage	60.00mV/600.0mV/6.000V/60.00V/600.0V/750V, ±(1.0%+3)
DC Voltage	60.00mV/600.0mV/6.000V/60.00V/600.0V/1000V, ±(0.5%+3)
Resistance	600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ ±(0.5%+3), 60.00MΩ ±(1.5%+3)
Capacitance	99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5), 9.999mF/99.99mF ±(5.0%+5)
Other Functions	Frequency 99.99Hz/999.9Hz/9.999kHz/99.99kHz/ 999.9kHz/9.999MHz ±(0.1%+2), Duty Cycle 1%-99% ±(0.1%+2), Temperature -20℃~1000℃/-4℉~1832℉ ±(2.5%+5), Diode/Continuity, NCV, Auto ranging True RMS Data hold, Backlight Low battery alert Auto power off, Power Supply 2 x 1.5V AAA Battery

Additional Features

Certification	CE Marking, FCC Certification
Technology Used	True RMS: This technology ensures accurate readings of AC signals, even if they are not purely sinusoidal., Auto-Ranging: The multimeter automatically selects the appropriate measurement range, simplifying usage and minimizing the need for manual adjustments., 6000-Count LCD Display: Provides a clear and detailed digital display for easy reading of measurements., AC/DC Voltage, Current, Resistance, Capacitance, and Frequency Measurement: The multimeter can measure a wide range of electrical parameters, Temperature Measurement: Includes the ability to measure temperatures using a thermocouple., Continuity Test: Detects if a circuit is continuous., Diode Test: Measures the forward voltage drop of a diode., Smart Mode (Auto Mode): Automatically selects the appropriate measurement function based on the input signal, simplifying operation., Other Features: Includes features like low battery alert, auto power off, data hold, and backlight for enhanced usability.
Other Features	Product is Brand New and 100% tested.

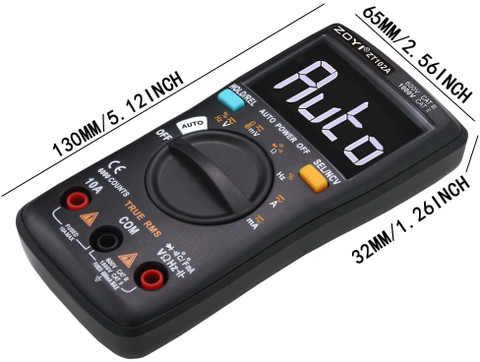

Dimensions

Width	65 mm
Height	130 mm
Depth	32 mm
Weight	280 g
Other Dimensions	1306532mm
