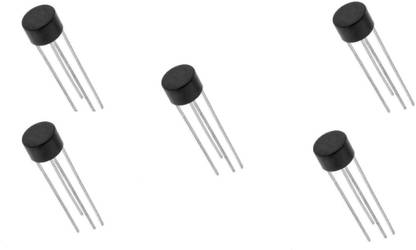

AEAAICO 1.5 Amp Full Wave Bridge Rectifier - W10M PN Junction  (Pack of 4)

The 1.5 Amp Full Wave Bridge Rectifier (W10M) is a single phase Bridge Rectifier. Voltage Range is 50 to 1000 Volts and Current is 1.5 Amperes. Mechanical Data:- • Case: Molded plastic body • Terminal: Lead solderable per MIL-STD-202 E method 208 C. • Polarity: Polarity symbols molded on case • Mounting position: Any • Weight: 0.042 ounce, 1.2 grams Specification:- SymbolParameterValueUnits VRRMMaximum Repetitive Peak Reverse Voltage100V VRMSMaximum RMS Voltage70V VDCMaximum DC Blocking Voltage100V I(AV)Maximum Average Forward Rectified Output Curren1.5A IFSMPeak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load50A VFMaximum Instantaneous Forward Voltage at 1.0A1V CJTypical Junction Capacitance15PF R?JATypical Thermal Resistance40?/W TJOperating Temperature Range-55 to +125? TSTGStorage Temperature Range55 to +150?
