AEAAICO 1N4937 Diode - 600V 1A Fast Recovery Diode Step Recovery Diode

AEAAICO 1N4937 Diode - 600V 1A Fast Recovery Diode Step Recovery Diode (Pack of 4)

Share

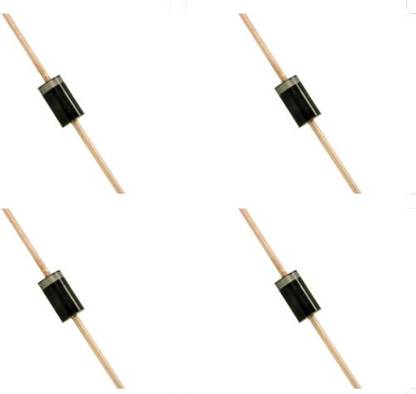

AEAAICO 1N4937 Diode - 600V 1A Fast Recovery Diode Step Recovery Diode  (Pack of 4)

Be the first to Review this product
₹155
249
37% off
i
Delivery
Check
Enter pincode
    Delivery by10 Jun, Tuesday|Free
    ?
View Details
Services
  • Cash on Delivery available
    ?
Seller
LogicPart
(Not Enough Ratings)
  • 7 Days Return Policy
    ?
  • See other sellers
  • Description
    The IN4937 Axial-lead, Fast Recovery Rectifiers are designed for special applications such as dc power supplies, inverters, converters, ultrasonic systems, choppers, low RF interference and free wheeling diodes. A complete line of fast recovery rectifiers having typical recovery time of 150 nanoseconds providing high efficiency at frequencies to 250 kHz Mechanical Characteristics:- • Case: Epoxy, Molded • Weight: 0.4 Gram (Approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable • Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds • Polarity: Cathode Indicated by Polarity Band Specification:- SymbolParameterValueUnits VRRMPeak Repetitive Reverse Voltage600V VRWMWorking Peak Reverse Voltage600V VRDC Blocking Voltage600V VR(RMS)RMS Reverse Voltage420V VRSMNon?Repetitive Peak Reverse Voltage650V IOAverage Rectified Output Current1A IFSMNon-Repetitive Peak Forward Surge Current30A TJOperating Junction Temperature Range? 65 to +150°C TstgStorage Temperature Range? 65 to +150°C
    Read More
    Specifications
    In The Box
    Sales Package
    • Pack of 4
    Pack Of
    • Pack of 4
    General
    Brand
    • AEAAICO
    Model Number
    • 1N4937 Diode - 600V 1A Fast Recovery Diode
    Type
    • Step Recovery Diode
    Pin Count
    • 2
    Mounting Type
    • Axial Lead
    Used For
    • For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer and telecommunication.
    Frequency
    • 250 KHz
    Power Consumption
    • 1.2 W
    Maximum Forward Current
    • 1 A
    Maximum Operating Temperature
    • 150 degC
    Minimum Operating Temperature
    • -65 degC
    Knee Voltage
    • 1.2 V
    Capacitance
    • 12 pF
    Maximum Forward Voltage
    • 1.2 V
    Maximum RMS Reverse Voltage
    • 600 V
    Other Features
    • Fast Switching for High Efficiency
    • Low Forward Voltage Drop
    • Low Leakage Current
    • High Forward Surge Capability
    • Solder dip 275 °C max. 10 s, per JESD 22-B106
    Net Quantity
    • 4
