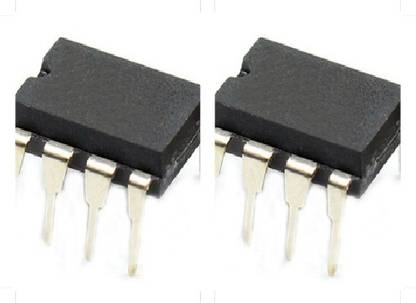

AEAAICO 24C08 8K bit Serial I2C Bus EEPROM IC DIP-8 Package Electronic Components Electronic Hobby Kit

The Microchip Technology Inc. 24C08 is an 8K or 16K bit Electrically Erasable PROM intended for use in extended/automotive temperature ranges. The device is organized as four or eight blocks of 256 x 8-bit memory with a 2-wire serial interface. The 24C08 also has a page-write capability for up to 16 bytes of data. The 24C08 is available in the standard 8-pin DIP and both 8-lead and 14-lead surface mount SOIC packages. Specification:- Parameter Specification VCC7.0V All inputs and outputs w.r.t. VSS-0.6V to VCC +1.0V Storage temperature-65°C to +150°C Ambient temperature with power applied-65°C to +125°C ESD protection on all pins? 4 kV Soldering temperature of leads (10 seconds)300°C
