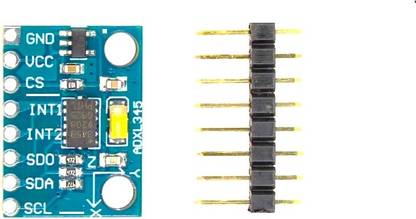

AEAAICO ADXL345 Triple Axis Accelerometer Module Accelerometer Sensor

This ADXL345 Triple axis accelerometer module is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is format as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. The ADXL345 Triple axis accelerometer module is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4mg /LSB) enables resolution of inclination changes of as little as 0.25°. Digital Output: SPI / I2C 5V/3.3V input support. Lower pressure drop than the 1117 Onboard RT9161 chip power Ideal for noisy power environment Ultra-Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V. Free-Fall Detection. Tap/Double Tap Detection. Wide temperature range (?40°C to +85°C). 10,000 g shock survival. User-selectable resolution Fixed 10-bit resolution. Full resolution, where resolution increases with G range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all G ranges).
