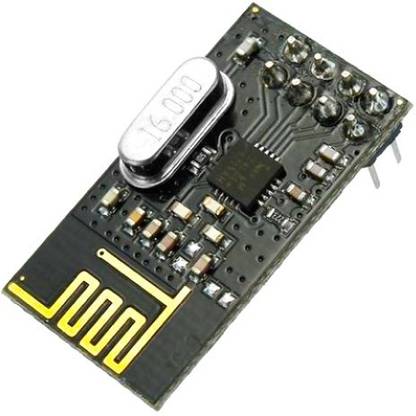

AEAAICO Ai Thinker NF-01-S Wireless Transceiver Module Micro Controller Board Electronic Hobby Kit

Ai Thinker NF-01-S Wireless Transceiver is a 100mW power 2.4G wireless module, high-altitude rate (up to 2Mbps), using SPI interface, send and receive in one pure hardware module; high stability, cost performance, Volume, use of all-industry components. NF-01-S can be widely used in a variety of networking occasions, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low power consumption network of wireless sensor networks, is the ideal solution of Internet of Things application. Features: DIP-8 ultra-small package, built-in 2.4G antenna, small size, easy to use Supports data reception for six channels Supports common modulation such as GFSK / FSK Supports 2Mbps / 1Mbps / 250Kbps data rate Multi-frequency: 126 frequency, to meet the needs of multi-point communication and frequency hopping communication Internal integration of high PSRR LDOs Wide supply voltage range: 1.9 ~ 3.6V Average emission current as low as 110mA Receiver sensitivity: -96dBm @ 250kbps Maximum transmit power: + 7dBm Four-wire SPI interface for up to 10MHz Internal Integrated Smart ARQ Baseband Protocol Engine Transmit data hardware interrupt output Supports 1bit RSSI output
