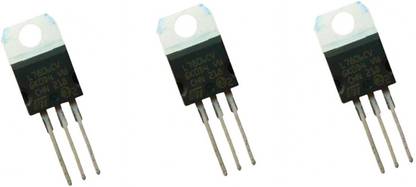

AEAAICO LM7806 IC - 6V Positive Voltage Regulator IC Electronic Components Electronic Hobby Kit

The LM7808 series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially The LM7806 series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents. Specification:- SymbolParameterMinTypeMaxUnits VOOutput Voltage5.5766.25V ReglineLine Regulation 5120m V RegloadLoad Regulation 9120m V IQQuiescent Current 58°C RRRipple Rejection6273 d B
