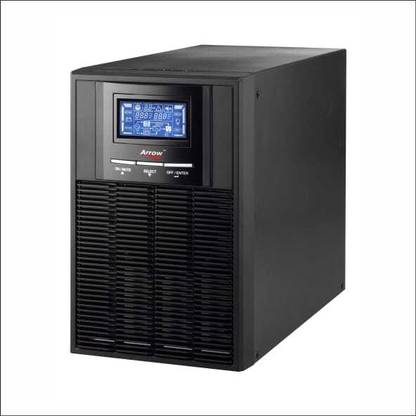

Arrowpowertech Arrow 1KVA OLHF UPS for Personal Computers ONLINE 230 V Online/double-conversion Tower Model UPS with Overload Protection with Digital Display 3 Outlet Plugs

Price: Not Available

Currently Unavailable

Warranty

Please check the physical product for the warranty period and service center details (if any)

Highlights

Type: Online/double-conversion
Output Power Wattage: 360 W
Input Voltage: 230 V|Output Voltage: 230 V
Input Frequency: 50Hz|Output Frequency: 50Hz+/-1Hz
W x H x D: 10.1 cm x 14.2 cm x 27.9 cm

Description

Arrow 1000 VA Online UPS with Built in Battery .FEATURES: World Class Construction :A single PCB with snap-on connectors makes it very compact and reliable UPS System. Built-in AVR with High Low Protection : Automatic voltage regulation provides regulated AC power at all times and wide input range eliminates unnecessary battery drain. No Load Shutdown (Battery Saver) : UPS meets the Green Concept standard for energy saving. UPS will shutdown itself when utility fails and there is no load connected to UPS. This is to prolong Battery life. Cold Start : UPS will start even when mains is absent. Safety Features : The UPS is equipped to provide protection against short circuit, overload, Battery overcharge and deep discharge.

Specifications

In The Box

1 UPS , Batteries (in built) & user manual

General

Brand	Arrowpowertech
Model Number	ONLINE
Type	Online/double-conversion
Form Factor	Tower Model
Model Name	Arrow 1KVA OLHF UPS for Personal Computers
Overload Protection	Yes
Certification	CE, ROHS, BIS, ISO
Technology Used	Green Power UPS, Mains mode AVR, Battery mode MOSFET-PWM Technology
Cold Start	Yes
Color	Black

Input Features

Input Voltage	230 V
Input Frequency	50Hz
Phase	single phase
Input Plug Type	3 Pin

Output Features

Output Voltage	230 V
Output Frequency	50Hz+/-1Hz
Output Power Wattage	360 W
Efficiency	>95 %
Output Waveform	Simulated Sinewave
Transfer Time	2 ms
Outlet Plug Type	3 Pin
Number of Outlet Plugs	3
Surge Protection	Yes
Output Power Factor	0.8
Other Output Features	Gives you clean regulated power

Convenience Features

Digital Display	Yes
Display Type	Yes
Display Indicator Functions	Power On, Battery Charging, Battery Mode,
Audible Indicator Functions	Buzzer , alarm
Emergency Power Off	Yes
Serial Port	No
Low Battery Indicator	Yes
LED Indicator Function	Yes
Other Convenience Features	The UPS is equipped to provide protection against short circuit, overload, Battery overcharge and deep discharge.

Dimensions

Width	10.1 cm
Height	14.2 cm
Depth	27.9 cm
Weight	9.1 kg
Cord Length	0.8 m
Other Dimensions	360, 230, 325

Battery Features

Battery Type	Lead-Acid Battery
Recharge Time	6 hours recover to 90% capacity
Number of Batteries	2
Battery Voltage	12 V
Battery Capacity	7ah
Full Load Runtime	15 min
Half Load Runtime	30 min
Replacement Battery	Yes
Replacement Battery Type	SMF VRLA
Other Battery Features	Sealed Maintenance Free VRLA

Environmental Features

Minimum Operating Temperature	10 degree C
Maximum Operating Temperature	45 degree C
Noise Level	< 40dB @ 1 Meter
Operating Humidity	90 %
Storage Temperature	0-75 degree C
Other Environmental Features	UPS meets the Green Concept standard for energy saving

Additional Features

plug and play product, easy to use and operate

Warranty

Warranty Summary	Please check the physical product for the warranty period and service center details (if any)
Service Type	Service Centre Walk in
Covered in Warranty	UPS & Internal Battery
Not Covered in Warranty	Physical Damage & burnt out units
Domestic Warranty	12 Months
International Warranty	0 Months
