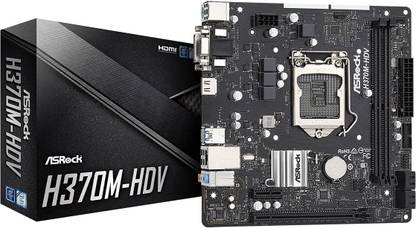

ASRock H370M-HDV LGA1151/ Intel H370/ DDR4/ SATA3&USB3.2/ Micro ATX LGA1151Socket Micro-ATX Intel H370 Chipset DDR4 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

3 Year Manufacturing Warranty

Highlights

Suitable For Desktop
Intel H370
Data Rate DDR4
Maximum RAM Capacity 64 GB
Form Factor: Micro-ATX

Description

Mfr Part Number: H370M-HDV Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High-Density Glass Fabric PCB ASRock Live Update & APP Shop CPU: Supports 9th and 8th Gen Intel Core Processors (Socket 1151) Supports CPU up to 95W 4 Power Phase design Supports Intel Turbo Boost 2.0 Technology Chipset: Intel H370 Memory: Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Max. the capacity of system memory: 64GB Supports Intel Extreme Memory Profile (XMP) 2.0 15 Gold Contact in DIMM Slots

Specifications

In The Box

Sales Package

1 x Motherboard, 1 x Quick Installation Guide, 2 x SATA Data Cables, 1 x Support CD, 1 x I/O Shield

General

Brand	ASRock
Model ID	H370M-HDV LGA1151/ Intel H370/ DDR4/ SATA3&USB3.2/ Micro ATX

Essentials

Form Factor	Micro-ATX
Socket Type	LGA1151
Compatible Processors	Intel
Chipset	Intel H370
Chipset Manufacturer	Intel

Memory

Memory Configuration	64 GB DDR4 Dual Channel DDR4 Memory Technology DIMM
Memory Frequency	2666 MHz
ECC Support	non-ECC
Buffered Memory	No

Graphics

Integrated Graphics card	Integrated
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek 887/897 Audio Codec
Audio Channels	7.1
Audio Features	Supports Surge Protection

Connectivity

Ethernet Features

Supports Wake-On-LAN, Supports Energy Efficient Ethernet 802.3az, Supports PXE

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	1
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 6 Gb/s Headers	4
USB 2.0 Headers	1
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	Temperature Sensing: CPU, Chassis/Water Pump Fans, Fan Tachometer: CPU, Chassis/Water Pump Fans, Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans, Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans, CASE OPEN detection, Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Bundled Software	ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN
OS Support	Microsoft® Windows® 10 64-bit / 11 64-bit
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, DRAM, PCH 1.05V Voltage Multi-adjustment

Warranty

Warranty Summary	3 Year Manufacturing Warranty
Covered in Warranty	Manufacturer Defect
Not Covered in Warranty	Physical Damage and Burnt
Warranty Service Type	Bring the Product at a Certain service Center
