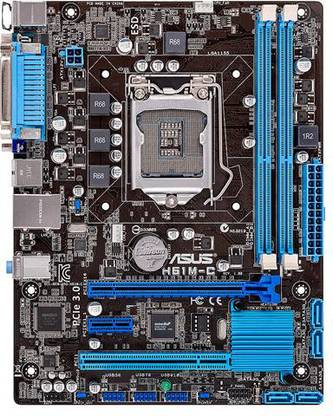

    ASUS H61M-C LGA 1155Socket ATX Intel H61 Chipset DDR3 Motherboard

    ASUS H61M-C LGA 1155Socket ATX Intel H61 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    3 Years Asus India Warranty and Free Transit InsuranceKnow More
    Highlights
    • Intel H61
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    Other Ports
    • 1 x COM Port, 1 x Parallel Port
    In The Box
    Sales Package
    • Motherboard, SATA Cables, Rear I/O Panel Shield, SATA Cable and Supporting CD Software
    General Features
    Support CDs
    • Drivers, Asus Utilities, Asus Update, Anti-virus Software (OEM Version)
    BIOS
    • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready
    Features
    • Asus UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Asus Exclusive Features: AI Suite II, Integrated Graphics Processor, Network iControl, Asus EZ DIY, Anti-Surge, PME Wake Up, Dimensions: 226 x 178 mm, Supports RGB with Maximum Resolution 2048 x 1536 at 75 Hz, Asus Quiet Thermal Solution, PXE, Manageability: WOL, 100% All High-quality Conductive Polymer Capacitors, Ai Charger
    Advanced Technologies
    • Supports Intel Turbo Boost Technology 2.0, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types
    Advanced Features
    • Supports Intel 22 nm CPU, Supports Intel 32 nm CPU
    Warranty
    Warranty Summary
    • 3 Years Asus India Warranty and Free Transit Insurance
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1866 MHz, 1066 MHz, 2200 (OC) MHz, 2133 MHz, 2000 MHz, 1600 MHz, 1333 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Celeron Processors, Intel 3rd Generation Pentium Processors, Intel 2nd Generation Pentium Processors
    Chipset
    • Intel H61
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • Yes
    Storage
    SATA 3 Gb/s
    • Intel H61 (B3)
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2, 1, 0
    PCIe x16 Slots, Generation
    • 1
    General
    Brand
    • ASUS
    Model ID
    • H61M-C
    Color
    • Black
    Key Features
    • ATX Form Factor, Maximum 16 GB DDR3, LGA 1155 Socket Type, Intel H61 Chipset, 2 Memory Slots, Dual Channel Memory
    Connectivity
    Ethernet Controller
    • Realtek 8111F
    Ethernet Features
    • 1 x Gigabit LAN Controller
    Audio
    Audio Codec
    • Realtek ALC887
    Audio Channels
    • 8
    Audio Features
    • High Definition Audio Codec
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 3
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Internal Speaker Connector, 1 x Clear CMOS Jumper, 1 x Front Panel Audio Connector (AAFP), 1 x 24-pin EATX Power Connector, 1 x Chassis Fan Connector (1 x 4-pin), 1 x S/PDIF Out Header, 1 x 4-pin ATX 12V Power Connector, 1 x CPU Fan Connector (1 x 4-pin)
