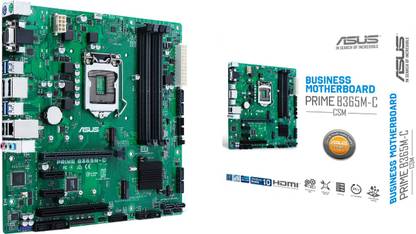

    ASUS Prime B365M-C/CSM LGA1151Socket Micro-ATX Intel B365 Chipset DDR4 Motherboard for Desktop
    Get notified when this item comes back in stock.
    Home
    Computers
    Computer Components
    Motherboards
    ASUS Motherboards

    ASUS Prime B365M-C/CSM LGA1151Socket Micro-ATX Intel B365 Chipset DDR4 Motherboard for Desktop

    Share

    ASUS Prime B365M-C/CSM LGA1151Socket Micro-ATX Intel B365 Chipset DDR4 Motherboard for Desktop

    4.5
    4 Ratings & 0 Reviews
    ₹8,398
    ₹9,900
    15% off
    i
    + ₹29 Protect Promise Fee Learn more
    Sold Out
    This item is currently out of stock
    3 Years Limited Local WarrantyKnow More
    Highlights
    • Suitable For Desktop
    • Intel B365
    • Data Rate DDR4
    • Maximum RAM Capacity 64 GB
    • Form Factor: Micro-ATX
    Seller
    RetailNet
    4.7
    • No Returns Applicable
      ?
    • GST invoice available
      ?
  • See other sellers
    • Description
    ASUS is the world's biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Combined with our world-class after-sales service and guaranteed long-term availability to maximize your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.
    Read More
    Specifications
    In The Box
    Sales Package
    • 1 Mother Board, User's Manual
    General
    Brand
    • ASUS
    Model ID
    • Prime B365M-C/CSM
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA1151
    Compatible Processors
    • Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
    Chipset
    • Intel B365
    Chipset Manufacturer
    • Intel
    Memory
    Memory Configuration
    • 64 GB DDR4 DIMM
    Memory Frequency
    • 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • No
    Storage
    SATA 6 Gb/s
    • 6, Intel B365 Chipset
    RAID Controller
    • Intel B365
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    Integrated Graphics card
    • Intel HD Graphics Support
    External Graphics Card Support
    • Yes
    Audio
    Audio Codec
    • Realtek® ALC887 8-Channel High Definition Audio CODEC *1
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 6
    USB 3.0 Headers
    • 8
    Other Connectors
    • Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 2 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x MONO out header *2 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x SPI TPM header 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x LPC Debug header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    USB 3.0 Ports, Controller
    • 8
    HDMI Ports
    • 1
    PS/2
    • 2
    General Features
    OS Support
    • Windows 10 64-bit
    BIOS
    • 128 MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, Asus Self-Recovering BIOS, Asus Event Log, Asus Commercial Kit
    Advanced Features
    • Bespoke Motherboard Design & Business Focused Features : - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi+VRM
    Warranty
    Warranty Summary
    • 3 Years Limited Local Warranty
    Covered in Warranty
    • Product Warranty Limited to Manufacturing Defects Only
    Not Covered in Warranty
    • Physical Damage
    Warranty Service Type
    • Carry-in
    Ratings & Reviews
    4.5
    ★
    4 Ratings &
    0 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 2
    • 2
    • 0
    • 0
    • 0
    Have you used this product? Be the first to review!
    Questions and Answers
    Q:Will DDR4 motherboard support DDR3?
    A:DDR4 compatible motherboards DO NOT support and are NOT compatible with DDR3 RAM.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Can a motherboard bottleneck a GPU?
    A:As long as a motherboard and GPU are fully compatible with each other, the motherboard should not limit your graphics card performance.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Is a motherboard important for gaming? How do they affect gaming?
    A:Motherboards are very important as they regulate the critical support necessary for gaming. Things like CPU support, PCIe Gen version, amount and speed of RAM are all features motherboard.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Which motherboards are compatible with Intel Processors?
    A:Popular Intel compatible motherboard manufacturers include brands like: ASUS, ASRock, MSI, and Gigabyte.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Can a motherboard overheat?
    A:Yes, motherboards can overheat. A computer needs good airflow throughout the case to cool down components; this ensures that hot air is removed effectively to prevent overheating.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Will RAM work with my motherboard
    A:Not all RAM is compatible with every type of motherboard. It is always best to use a compatibility checker when checking RAM compatibility
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Will graphics card work with my Motherboard?
    A:Graphics cards need specific connections on a motherboard like PCI express in order to work.There are also specific PCI express slots needed in order to fully use the power of certain graphics cards.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Will motherboard comes with cables?
    A:This is not always the case, but manufacturers do often include one or more SATA cables along with other accessories with new motherboards.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Which PC case is compatible with my motherboard?
    A:Not every computer case will work with every motherboard. Please take note of your motherboards form factor so that you can select a case that will support it.
    RetailNet
    Flipkart Seller
    0
    0
    Report Abuse
    All questions+
