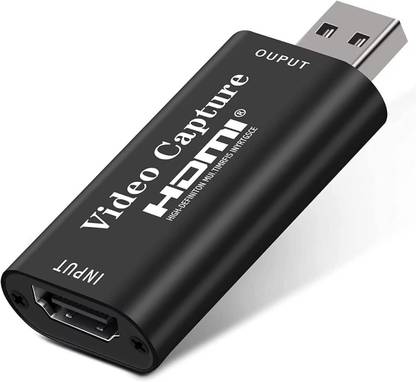

atdaraz HDMI to USB 2.0 Video Capture Card HD Game/Video Broadcasting Streaming Video Media Streaming Device  (Black)

Advantage :- 1.Universal Compatibility. Support most acquisition software, Support Windows Android and MacOS system. 2.Stable Capture; Smooth video and audio; Without delay. 3.High Speed Transmission. It supports Input (HDMI) max resolution 4K @60Hz; output (USB) max resolution 4K@60Hz. Please used with 4k HDMI cable. 4.The capture card can realize screen sharing, fast, convenient & economical. 5.No External Power Supply Required, Compact and Portable; Easy to Use and Carry. Connection and Operation : 1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable. 2. Connect the computer to the usb port of the video capture with usb cable. 3. Operation steps for USB video capture(OBS): Open the software ?Choose sources of “Video capture Device” ?Set the size of image ?Choose “Studio Mode”(double window) ?Choose “Start Recording”. Features : * Support input & output max resolution 4K; * Support 8/10/12bit deep color; * Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution); * Video output format: YUV / JPEG; Support audio format: L-PCM * Max working current: 0.4A/5VDC * Operating Temperature range: (-10 to +55?) * Dimension (L x W x H): 64x28x13 (mm); Weight: 21.4g Note : Computer hardware configuration requirements CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above Graphics card: PC NVIDIA GT630 or above NC NVIDIA GT735M or above Run memory: 4G RAM. Package Lists : 1x Video capture 1x User manual.
