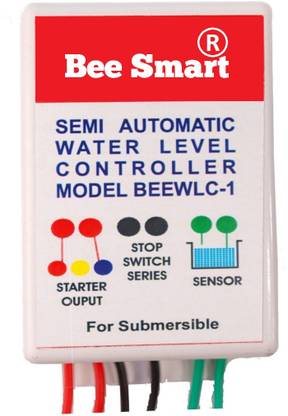

BeeSmart Semi Automatic Water Level controller Manual On, Auto of Model BEEWLC-1 Wired Sensor Security System

BRAND: BEE SMART MODEL: BEEWLC-1 Save Water Save energySupply voltage : 190-250 VAC,Controller contact  5 A NC . Suitable for contactor type submersible starter no Motor hp limit Depend on starter capacity   . Warranty:1 Year  Guaranty Replacement . No warranty if wrong connection ,seal broken & any damage . Package contains: Semi Automatic Water level controller  1 unit,  Connection Drawing & installation manual .Level sensor 2 nos S.S. material rust proof.Working : Install the water level  controller into the starter .connect the both red wire starter out put red and blue who goes to submersible motor .Than connect both black wire with stop push button series .than connect both green wire with level sensor.Set sensor 1 Wire  put at 90%  level , and 1 Wire at top level of the tank. When you need water , START the motor by PRESS START PUSH BATTEN now water tank start filling.  When the water level reaches to the TOP level,  the motor automatically gets switched off. No Man power is required.
