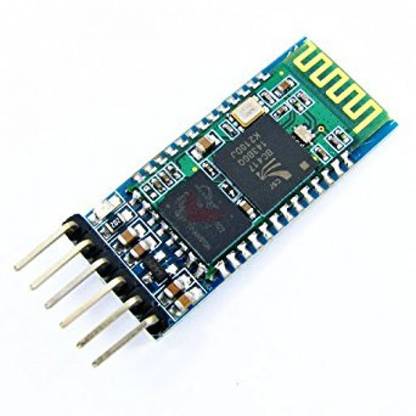

HC-05 Bluetooth Transceiver Module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. Its communication is via serial communication which makes an easy way to interface with controller or PC. HC-05 Bluetooth module provides switching mode between master and slave mode which means it able to use neither receiving nor transmitting data. Features/Specs: 1. Frequency: 2.4GHz ISM band 2. Modulation: GFSK(Gaussian Frequency Shift Keying) 3. Emission power: ?4dBm, Class 2 4. Sensitivity: ?-84dBm at 0.1% BER 5. Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps 6. Security: Authentication and encryption 7. Profiles: Bluetooth serial port 8. Power supply: +3.3VDC 50mA 9. Working temperature: -20 ~ +75 Centigrade 10. Dimension: 26.9mm x 13mm x 2.2 mm Note: Product Images are shown for illustrative purposes only and may differ from actual product
Read More
Specifications
In The Box
1xHC05 Blutooth Module
General
Brand
ROBOTONICS INDIA
Model Number
HC05
Skillset
Creativity & Imagination
Type
Radio
Minimum Age
12
ROHS Complaint
Yes
Material
Epoxy
Age Group
16+ Years
Dimensions
Width
2.69 cm
Height
1.3 cm
Weight
0.5
Power Features
Battery Type
DC
No Of Batteries
na
Battery Size
na
Power Source
DC
Power Consumption
0.04
Other Power Features
5V/3.3V DC
