BUSICORP BC-MM7 Digital Multimeter Non-magnetic Engineer's Precision Level  (11.5 cm)

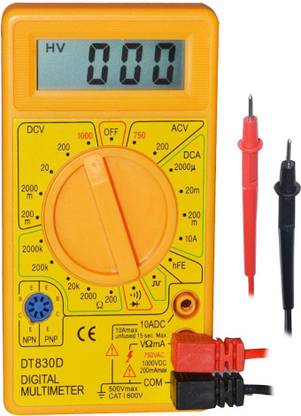

Small Digital Multimeter for your day to day needs If you have basic knowledge about Multimeters you can try this small Multimeter for basic continuity checks & Voltage Meaurements Description 1. Functions DCV ACV DCA Resistor (ohms) Diode Buzzer Transistor (HFE) Temperature Square Wave Output Battery Test 2. Display 4.75 cm length, 15mm high LCD. 3. Operating Instructions When testing DC voltage, AC voltage, DC current, resistance, diode, buzzer and battery, connect the red test lead to “V 0 mA” jack and black test lead to “COM” jack. When testing the current more than 200mA, connect the red test lead to “‘ OADC” jack and black test lead to •COM” jack When testing the temperature, connect the temperealure probe to “V, 0, mA” jack or “COM” jack. It can also be connected to the jack specialised for it. When testing the magnifying ratio of the transistor, turn the switch to hFE position and connect the transistor to the eight-hole jack. Square wave output: the frequency is 50Hz, the voltage is approx. 3Vp-p. The output jack is “V, 0, mA” and •COM”. General Powered by 9V Battery Inside Dimensions Multimeter : 12.5 cms(Length) X 6.75 cms(Width) X 2.25 cms (Thickness) Wire Length (Including Pin) : 71 cms each
