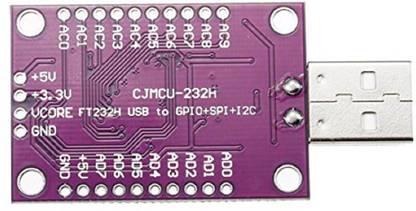

Buyyart New CJMCU FT232H High Speed Multifunctional USB to JTAG UART/FIFO SPI/I2C Module For Arduino Electronic Components Electronic Hobby Kit

CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. It has the capability of being configured in a variety of industry standard serial or parallel interfaces. The FT232H has the following advanced features: - Single channel USB to serial / parallel ports with a variety of configurations. - Entire USB protocol handled on the chip. No USB specific firmware programming required. - USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible. - Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design. - UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter). - USB to asynchronous 245 FIFO mode for transfer data rate up to 8 Mbyte/Sec. - USB to synchronous 245 parallel FIFO mode for transfers upto 40 Mbytes/Sec - Supports a proprietary half duplex FT1248 interface with a configurable width, bi-directional data bus (1 - Fast serial interface option. - FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases. - Adjustable receive buffer timeout. Typical Applications: - Single chip USB to UART (RS232, RS422 or RS485) - USB to FIFO - USB to FT1248 - USB to JTAG - USB to SPI - USB to I2C - USB to Bit-Bang - USB to Fast Serial Interface - USB to CPU target interface (as memory) Package included: 1 x Module
