CLASSIC GOLD 4440 IC DIY Sound Recorder and Sound Circuit Electronic Hobby Kit

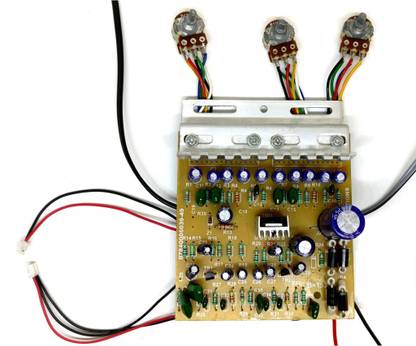

Double IC 4440 Stereo Amplifier board, High Power up to 100 Watt output( depends on Input supply power). it requires 12 v dc power min requirement is 2 amp. Recommended 3 Amp. The board contains a bridge rectifier onboard, that means you just need to attach a 12 volts transformer to it and the board is ready to go. The best part about the kit is that it is made of individual components, which means if any thing goes wrong it can be easily serviced and components can be replaced. 4440 is a two channel audio power amplifier IC with inbuilt in dual channels which enables it for stereo and bridge amplifier applications. Comes with pre-integrated Volume, Bass and Terrible controller. Input Supply : 12 v - 16 v. 3 Amp (12-0 transformer or car battery ) 5 volt out is given in circuit using 7805 transistor in case if wants to connect FM, USB Panel kit. Input sound : two channel stereo Output sound : two channel stereo This amplifier kit can be used in any audio amplifier, including FM, MP3-USB player, CD/DVD, DTH, Tape, Car stereo, TV etc....... ( Note : This kit is not for novice electronics hobbyist. Proper knowledge about the subject is required to understand and make the complete project We do not held any responsible for any issues or help either due to negligence, ignorance or lack of proper knowledge about the subject.) Package : 1 x Audio Amp Board (all connections will be provided as shown in the picture. two 4440 ic along with heat sink and 7805 will be provided soldered on-board. potentiometers will be soldered by ribbon cables)
