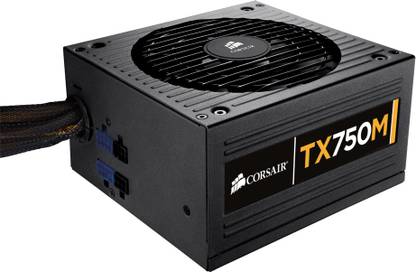

    Corsair Enthusiast Series Modular TX750M - 80 PLUS Bronze Certified 750 Watt PSU

    Corsair Enthusiast Series Modular TX750M - 80 PLUS Bronze Certified 750 Watt PSU

    Price: Not Available
    Currently Unavailable
    Warranty
    5 Years Domestic Warranty
    Highlights
    • Power Output: 750 W
    • 1 12V Power Rails
    • ATX 12V Version: 2.31
    • Number of Fans: 1
    Specifications
    Other Features
    Additional Features
    • EPS Connector
    Warranty
    Domestic Term
    • 5 Years
    Service Type
    • Carry In
    Covered in Warranty
    • Manufacturing Defects
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Type
    • Repair / Replacement
    Warranty Summary
    • 5 Years Domestic Warranty
    Maximum Current
    Current at DC Output of +3.3 V
    • 30 A
    Current at DC Output of +5 V
    • 30 A
    Current at DC Output of +12 V
    • 62 A
    Current at DC Output of -12 V
    • 0.8 A
    Current at DC Output of +5 V sb
    • 3 A
    General
    Brand
    • Corsair
    Series
    • Enthusiast Series
    Part Number
    • CP-9020003-NA
    Power Output
    • 750 W
    ATX & EPS Version
    • ATX 12V v2.31 and EPS 12V v2.92
    Power Rail
    • 1 x 12V Power Rails
    Number of PCI Pins
    • 4
    Model Name
    • Modular TX750M
    Key Features
    • 750 W Power Output, ATX 12V v2.31 and EPS 12V v2.92, 1 x 12V Power Rail, 100000 hours MTBF, 90 - 264 Vac Input, 85 % Efficiency, Safety Standards: cTUVus, CE, CB, FCC Class B, TUV, CCC, C-tick
    Connectivity
    SATA
    • 8 SATA Cables
    Floppy
    • 2 Floppy Connector with 4 pins
    Peripheral
    • 4 Peripheral Connector with 4 pins
    Dimensions
    Width x Height x Depth
    • 150 x 86 x 160 mm
    Weight
    • 2.7 kg
    Features
    Fan Type
    • 1 x 140 mm Double Ball Bearing, Ultra Quiet, Excellent Airflow, Exceptionally Low Noise Levels, Varying Fan Speed in Response to Temperature
    Temperature
    • to 50 °C (Operating Temperature)
    Protection
    • Over Voltage Protection (OVP), Over Current Protection (OCP), Under Voltage Protection (UVP), Short Circuit Protection (SCP)
    Safety Standards
    • cTUVus, CE, CB, FCC Class B, TUV, CCC, C-tick
    Certification
    • 80 Plus Bronze
    Power
    Power Factor Correction (PFC)
    • Active PFC with Value of 0.99
    Input Voltage 1
    • 90 - 264 V
    Efficiency
    • 85 %
    Mean time between failures (MTBF)
    • 1,00,000 hr
