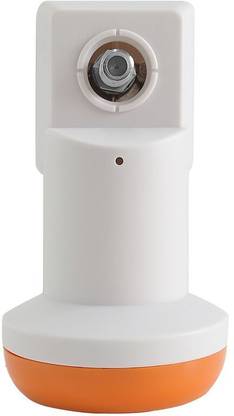

Creative Tech LNB for All DTH in Full Hd HD Signal Digital KU LNB Satellite Receiver Universal KU For Band Single High Gain Satellite Dish Electronic Components Electronic Hobby Kit

Input Frequency Range: Low Band:10.70~11.70GHz / High Band:11.70~12.75GHz Output Frequency Range: Low Band:950~1950MHz / High Band:1100~2150MHz Noise Figure: Low Band: 0.6dB(Typ.) / High Band:0.6dB(Typ.) Conversion Gain: 60dB(Typ.) Gain Flatness: ±0.5dB/26MHz Cross POL. Isolation: 25dB(Typ.) L.O. Frequency: Low Band: 9.75GHz / High Band: 10.60GHz L.O. Frequency Stability: ±1.0MHz (Max.)@+25° / ±2.0 MHz (Max.)@-30°~+70° L.O. Phase Noise: -50dBc/Hz@1KHz & -75dBc/Hz@10KHz & -95dBc/Hz@100KHz Image Rejection: 40dB(Min.) Output VSWR: 2.0:1(Max.) Output Power: 0dBm (Min.)(at 1dB gain compression) Connector Type: 75? Female Connector DC Current Consumption: 80mA(Typ.) Low/High Band Switching: Low Band:0Hz / High Band:22KHz±4KHz POL. Switching Voltage: 10.5~14.0V @VP / 16.0~20.0V @HP
