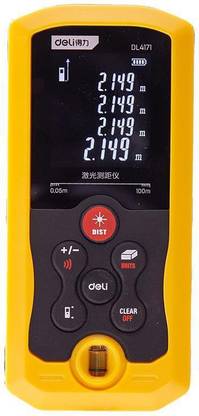

Deli 100m Laser Range Finder Laser Distance Meter DL4171 Test Indicator

Powerful tools, good quality 100m laser rangefinder High efficiency laser multi engine system, 1.7fstn display screen, 7 times continuous measurement in 1 second, head end or tail end benchmark can be set, area, volume and Pythagorean can be measured Automatic closing function, external horizontal bubble, big key setting, IP54 dust proof and waterproof Area, volume and Pythagorean mode Rich functions, one button switching, fast and accurate measurement The corresponding display icons of different mode switching screens are as follows Area model, volume model, Pythagorean model 1 Mode switch building Measure the length Operate in linear measurement mode, press dist key, turn on the laser, aim at the target position, keep stable, then press dist for single measurement, wait for about 1 second When the measurement is completed, the measurement results will be displayed on the screen Function of rangefinder Laser head, 1.7fstn display screen (four line data display), power on / measurement key, accumulation and subtraction, area / volume / Pythagorean mode, conversion of measurement benchmark, power off / clear key, balance bubble Area measurement mode operation Press uxits key to switch area mode, aim at the target position and keep stable Press dist for the first measurement, and then press dist for the second measurement When the measurement is completed, the calculation results will be displayed on the screen Volume measurement mode operation Press uxits key to switch volume mode, aim at the target position and keep stable Measure the length according to dist, and then measure the width according to dist Then the height is measured according to dist and the calculation is completed Pythagorean mode measurement operation Press uxits key to switch Pythagorean mode a The first measurement of bevel, the second measurement of right angle The height is calculated automatically and displayed on the screen Press uxits key to switch Pythagorean mode B First measure the top bevel, second measure the horizontal side The third measurement of the lower hypotenuse is displayed on the screen Continuous measurement mode Long press the dist key to enter the continuous measurement mode, which can measure 7 times per second The display screen displays the data in real time, and the auxiliary area displays the max value and min value Press the off key to push out the continuous measurement mode Simple addition and subtraction calculation Deli range finder has the basic addit
