DHRUV-PRO BMP180 Digital Pressure Sensor Module for Arduino DIY Projects Electronic Components Electronic Hobby Kit

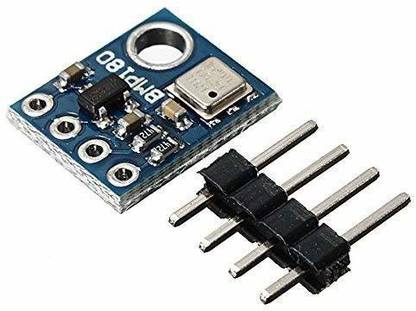

BMP180 Digital Barometric Sensor Module compatible with Arduino will Measure the absolute pressure of the environment using a digital barometer such as this has some interesting applications. By converting the pressure measured into altitude, you have a reliable sensor for determining the height of your robot, plane or projectile! Using a sensor as capable as the BMP180 you can achieve an accuracy of 1m, with the noise of only 17cm in ultra-high resolution noise. The device will operate at the only 0.3uA meaning low current draw for battery-powered applications. The BMP180 comes fully calibrated and ready to use. As the device operates over I2C we’ve added optional I2C pull-ups that can be enabled using the PU (pull up) jumper on the board for your convenience and ease during breadboarding. Using I2C, the device provides pressure and temperature as 16bit values, which are used along with calibration data within the device are used to provide a temperature compensated altitude calculation. Key features :- Pressure range : 300 ... 1100hPa (+9000m ... -500m relating to sea level) Supply voltage : 1.8 ... 3.6V (VDD) 1.62V ... 3.6V (VDDIO) Package : LGA package with metal lid Small footprint: 3.6mm x 3.8mm Super-flat: 0.93mm height Low power : 5µA at 1 sample / sec. in standard mode Low noise : 0.06hPa (0.5m) in ultra low power mode 0.02hPa (0.17m) advanced resolution mode Typical applications :- Enhancement of GPS navigation (dead-reckoning, slope detection, etc.) In- and out-door navigation Leisure and sports Weather forecast Vertical velocity indication (rise/sink speed) Package Includes :- 1 x BMP180 Digital Barometric Pressure Sensor Board Module 1 x 1x4 Burg Connector(Straight)
