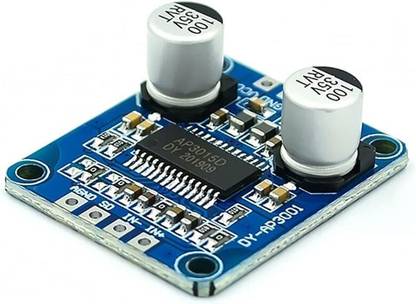

DHRUV-PRO dyap3001 DC 8V-24V High Power Digital Amplifier Module for30W-300W Speaker Audio Electronic Components Electronic Hobby Kit

1.Description: DY-AP3001 is a high-power mono Bluetooth audio module.Single channel audio signal output.Built-in amplifier module therefore it can connect to loudspeaker directly.It is ideal for DIY speakers and transponders. 2.Features: 1>.Width work voltage range 2>.Applicable multiple type speakers 3>.Support enabled/disabled output 3.Parameters: 1>.Product name:DY-AP3001 Digital Amplifier Module 2>.Model:DY-AP3001 3>.Work Voltage:DC 8V-24V 4>.Work Mode:Class D 5>.Channel:Mono 6>.Input:Audio input 7>.Output Power: 7.1>.Output power 30W at 16V 4ohm 7.2>.Output power 20W at 12V 4ohm 7.3>.Output power 10W at 12V 8ohm 7.4>.Output power 15W at 16V 8ohm 7.5>.Output power 25W at 24V 8ohm 8>.Match speaker(30W~300V): 8.1>.4ohm at 8V~16V 8.2>.8ohm at 8V~24V 9>.Work Temperature:-40?~85? 10>.Work Humidity:0%~95%RH 11>.Module Size:26*22*10mm 4.Use steps: 1>.Choose the right speaker and connect as shown in wiring diagram. 2>.Connect to right power supply from input terminal. 5.Application: 1>.Modified speaker 2>.Amplifier equipment 3>.Car device 6.Note: 1>.Pay attention to static electricity protection. 2>.Recommended power supply voltage DC 8~24V.Module will be damaged if input voltage is more than 26V. 3>.Input voltage can not more than 16V if connect 4ohm speaker. 4>.Input voltage can not more than 24V if connect 8ohm speaker. 5>.It is recommended to use a power supply of 2A or higher. 6>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged. 7>.Please don’t use too long wires to avoid signal interference. 8>.It is recommended to use a speaker above 30W to avoid speaker damage. 9>.Please read use manual and description before use.
