    DHRUV-PRO TP4056 PROTECTION MODULE Power Supply Electronic Hobby Kit
    Home
    Toys and Games
    Hobby Kits
    Electronic Kits
    DHRUV-PRO Electronic Kits

    DHRUV-PRO TP4056 PROTECTION MODULE Power Supply Electronic Hobby Kit

    Share

    DHRUV-PRO TP4056 PROTECTION MODULE Power Supply Electronic Hobby Kit

    Be the first to Review this product
    Special price
    ₹137
    ₹208
    34% off
    i
    Available offers
  • Special PriceGet extra 23% off (price inclusive of cashback/coupon)
    T&C
  • Bank Offer5% Unlimited Cashback on Flipkart Axis Bank Credit Card
    T&C
    • Delivery
    Check
    Enter pincode
      Delivery by9 Jun, Monday|Free
      ?
      if ordered before 8:59 AM
    View Details
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Fiber
    • Weight: 45
    Services
    • Cash on Delivery available
      ?
    Seller
    DHRUVcom
    3.8
    • 7 Days Return Policy
      ?
  • See other sellers
    • Description

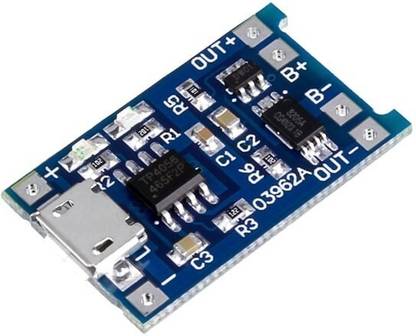

    TP4056 Micro USB 5V 1A 18650 Lithium Battery Charger Board Protection Module The TP4056 is a complete constant-current / constant voltage linear charger for single cell lithium-ion batteries. Its SOP package and low external component count make the TP4056 ideally suitable for portable applications. Furthermore, the TP4056 can work within USB and wall adapter. No blacking diodes are required due to the internal PMOSFET architecture and have prevent to negative charge current circuit. Thermal feedback regulates the charge current to limit the die temperature. The charge voltage is fixed at 4.2V, and the charged current can be programmed external with the single resistor. the TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
    Read More
    Specifications
    In The Box
    • N/A
    General
    brand
    • DHRUV-PRO
    Model Number
    • TP4056 PROTECTION MODULE
    Type
    • Power Supply
    Minimum Age
    • 5
    ROHS Complaint
    • Yes
    Material
    • Fiber
    Additional Features
    Other Features
    • Programmable Charge current up to 1000mA, Complete Linear Charger in SOP-8 Package for Single cell Lithium ion Batteries, Constant-current / Constant-Voltage Charges Single cell Li-Ion Batteries di, Preset 4.2V Charge Voltage with 1.5% Accuracy, Automatic Recharge, 2.9V Trickle Charge Threshold (TP4056), Soft-Start Limits Inrush Current, Available radiator in 8-Lead SOP Package., It can be used for voltages 3.6V, 3.7V etc. 18650, polymer, and other lithium battery charge and discharge protection., Input Voltage 5V, Charging cut-off Voltage : 4.2V +/- 1%, Maximum Charge current : 1000mA, Battery Over discharge protection voltage: 2.5V, Battery over current protection : 3A, LED Indicator : Red is charging and blue is fully charged
    Dimensions
    Width
    • 1 cm
    Height
    • 1 cm
    Other Dimensions
    • 0.1X0.2
    Weight
    • 45
    Power Features
    Battery Type
    • Lithium
    No Of Batteries
    • 1
    Battery Size
    • 5V DC
    Power Source
    • DC
    Power Consumption
    • USB 5V 1A
    Other Power Features
    • LED Indicator : Red is charging and blue is fully charged, Battery over current protection : 3A, Battery Over discharge protection voltage: 2.5V, Maximum Charge current : 1000mA, Charging cut-off Voltage : 4.2V +/- 1%, Input Voltage 5V, Automatic Recharge, Preset 4.2V Charge Voltage with 1.5% Accuracy, Charges Single cell Li-Ion Batteries directly from USB Port, Complete Linear Charger in SOP-8 Package for Single cell Lithium ion Batteries, 2.9V Trickle Charge Threshold (TP4056)
    Questions and Answers
    Q:Can i make 10000 mah power bank from this module
    A:Yes
    Anonymous
    Certified Buyer
    5
    4
    Report Abuse
    Q:is this a bluetooth module
    A:no
    Atanu Patari
    Certified Buyer
    5
    6
    Report Abuse
    Q:is this module heats up
    A:no heating problem
    Anonymous
    Certified Buyer
    0
    1
    Report Abuse
    Q:use 10000mah batery charging
    A:THE MODULE IS 5V & 1AMP CHARGING CAPACITY
    Anonymous
    Certified Buyer
    0
    0
    Report Abuse
    Q:it is very smell
    A:THERE IS NO SMELL, THE MODULE IS VERY SMALL
    Anonymous
    Certified Buyer
    0
    0
    Report Abuse
    Q:How many 3.7v battery connect in this module
    A:Only 1 battery connect.
    Anonymous
    Certified Buyer
    5
    0
    Report Abuse
    Q:can i charge 12v battery with this
    A:no it is working only 5v charge capacity
    Anonymous
    Certified Buyer
    5
    3
    Report Abuse
    Q:can you connect the speaker
    A:no this is 5 v charging module you connect 5v battery and 5v charger
    Anonymous
    Certified Buyer
    4
    2
    Report Abuse
    Q:Can I connect two 3.7 vol battery s to this
    A:no
    Anonymous
    Certified Buyer
    2
    1
    Report Abuse
    Q:3.7w 10000mah battery
    A:Any 3.7V battery can be charged with it.
    Anonymous
    Certified Buyer
    0
    0
    Report Abuse
