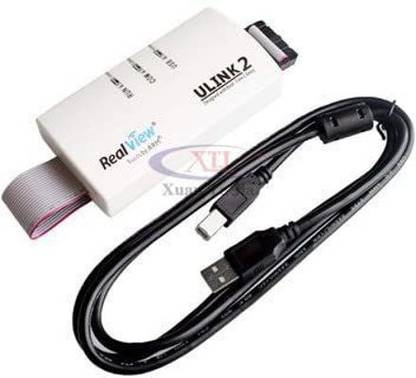

DHRUV-PRO ULINK2 Emulator ARM Programmer firmware/Support MDK5.0 Cortex-M4 SWD Electronic Components Electronic Hobby Kit

Description: Ulink 2 USB JTAG Emulator ARM9 Cortex Keil Ulink II GH2 ARM USB Compatible JTAG Adapter Debugger Keil Ulink-II Ulink 2 deos not need any specific drivers. It is automatically configured as a HID by Plug and Play in Windows. Latest Upgraded version of the ULink emulator. Not only has the ULINK2 emulator all the features of ULINK, but also serial wire debug (SWD) support, Clock return support and features such as real-time agent. Conveniently carried out target hardware on-chip debugging (using on-chip JTAG, SWD, and OCDS), Flash Programming .. Standard Windows USB driver support Plug and Play ULINK2, Support for ARM Cortex-M3-based serial wire debug, Support the program to run during the read-write memory, terminal emulation and serial debug output, Support 10-pin cable (also supports 20-pin cable) Breakpoints RAM : Unlimited ROM Breakpoints (ARM7 / 9) : 2 max ROM Breakpoints (Cortex-M3) : 6 max Execution breakpoints (Set While Executing) : yes Access Breakpoints (ARM7 / 9) : 2 max (R / W Only, With Value) Access Breakpoints (Cortex-M3) : 4 max (With Value) Trace History : no Real-Time Agent : yes JTAG clock - 10MHz JTAG RTCK support (Return Clock) : yes Memory R / W (Bytes / sec) : 28K Flash R / W (Bytes / sec) : 25K Single-Step (Fast) (Instructions / sec) : 50 Supported Devices: Actel (ARM7/ARM9/Cortex Family) COREMP7, Cortex-M1 Specifications: Color: White Item size: 112*56*23mm Cable length: about 1.5m Net weight: 154g Packing: 1x Ulink2 emulator 1x 20pin flat cable 1x USB 2.0 Cable
