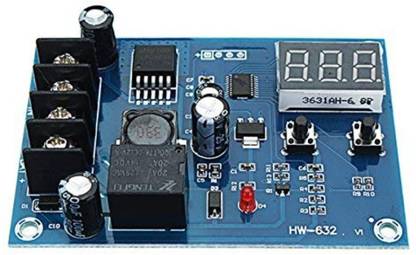

DHRUV-PRO XH-M603 DC 12-24V Charging Control Module Storage Lithium Battery Control Switch Protection Board Alternative Energy Electronic Hobby Kit

1. Model: XH-M6032. Input Voltage: DC 10-30V3. Display Precision: 0.1V4. Control Precision: 0.1V5. Output Type: directly output6. Voltage Tolerance: ±0.1V7. Application Fields: 12-24V storage battery (Applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery)8. Need connected to battery, or it won't be displayed.9. Size: 82 x 58 x 18mm1. Automatic control circuit connection2. Automatic charging and power off3. Real-time voltage monitor4. Auto save setting5. ST core chip6. LM2596 switch voltage regulatorUsing method:1. Set Starting Voltage: in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.2. Set Stop Voltage: in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value.3. Factory Reset: in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings.Package included:1 x XH-M603 charging control module.
