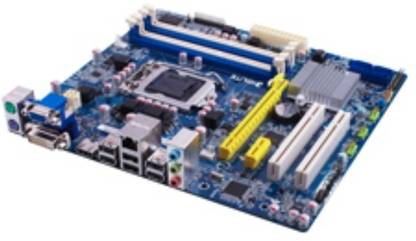

    DIGILITE DL-H61M-VG4 LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard

    DIGILITE DL-H61M-VG4 LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts helpdesk@digilite.co.in, Toll Free - 1800 209 3444 for Support
    Highlights
    • Intel H61
    • Data Rate DDR3
    • Maximum RAM Capacity 16 GB
    • Form Factor: Micro-ATX
    Specifications
    General
    Brand
    • DIGILITE
    Model ID
    • DL-H61M-VG4
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel 2rd Generation Core i7 Processor, Intel 3rd Generation Core i3 Processor, Intel 2rd Generation Core i3 Processor, Intel 3rd Generation Core i5 Processor, Intel 2rd Generation Core i5 Processor, Intel 3rd Generation Core i7 Processor
    Chipset
    • Intel H61
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 GB DDR3 Dual Channel DIMM
    Memory Frequency
    • 1600 MHz, 1066 MHz, 1333 MHz
    Storage
    SATA 3 Gb/s
    • Intel H61
    Audio
    Audio Codec
    • Realtek ALC662
    Audio Channels
    • 5.1
    Audio Features
    • High Definition Audio
    Connectivity
    Ethernet Controller
    • Realtek RTL8111E
    Ethernet Features
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    Expansion Slots
    PCIe x1 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 1, 3
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 2
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Chassis Fan Connector (3-pin), 1 x SPDIF Out Connector, 1 x IR Header, 1 x Power LED Header, 1 x Chassis Intrusion Header, 4 pin 12 V Power Connector
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Hardware Monitoring
    • CPU Temperature Sensing, Chassis Temperature Sensing, CPU Fan Tachometer, Chassis Fan Tachometer
    Support CDs
    • Drivers, Utilities
    Bundled Software
    • Norton Internet Security
    OS Support
    • Vista (64-bit), 7 (64-bit), Windows: XP (64-bit), 8 (64-bit)
    BIOS
    • 32 MB AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support
    Features
    • DMI 1.5, CE, Standards / Manageability: USB2.0, +3.3 V, CPU Quiet Fan (Allow Chassis Fan Speed Auto Adjust by CPU Temperature), Case Open Detection, CPU Fan Multi-Speed Control, Certifications: FCC, WHQL, Voltage Monitoring: +12 V, +5 V, CPU Vcore
    Dimensions
    Dimensions
    • 223.52 x 243.84 mm
    Warranty
    Domestic Term
    • 3 Years DIGILITE India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts helpdesk@digilite.co.in, Toll Free - 1800 209 3444 for Support
    Covered in Warranty
    • Manufacturing Defects
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
