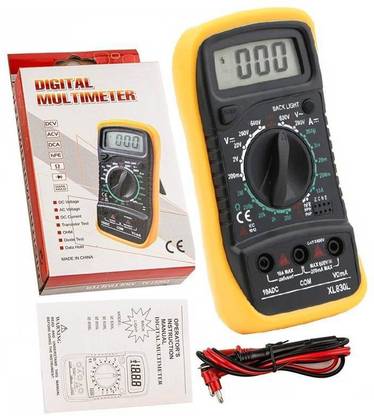

Divinext XL830L with Backlight LCD Display Digital Multimeter

Home

Home Improvement

Tools and Measuring Equipment

Measuring and Layout Tools

Multimeters

Divinext Multimeters

Divinext XL830L with Backlight LCD Display Digital Multimeter (Yellow, Black 2000 Counts)

3.1

14 Ratings & 4 Reviews

Special price

₹476

₹1,000

52% off

Available offers

Special PriceGet extra 28% off

T&C

Bank Offer5% cashback on Axis Bank Flipkart Debit Card up to ₹750

T&C

Bank Offer5% cashback on Flipkart SBI Credit Card upto ₹4,000 per calendar quarter

T&C

Bank OfferFlat ₹50 off on Flipkart Bajaj Finserv Insta EMI Card. Min Booking Amount: ₹2,500

T&C

Delivery

Check

Enter pincode

Delivery by26 Dec, Friday

View Details

Highlights

Material: Plastic
Display Type: LCD
DC Voltage: 200mV--2-20-200-600V ±0.5%
Resistance: 200/2k/20k/200/2M±(1.0%)
Technology Used: Resistance Circuit Testers

Services

Cash on Delivery available
?

Seller

KwalityKing

7 Days Return Policy
?

See other sellers

Specifications

General

Brand	Divinext
Model Number	XL830L with Backlight LCD Display
Type	Digital
Display Type	LCD
Color	Yellow, Black
Material	Plastic
Primary Functions	1. Max Display : LCD 3 *1/2 digits ( 1999 count ) 0.6'' high , Polarity : Automatic, indicated minus, assumed plus. , Measure Method : double integral A/D switch implement.
Number of Counts	2000
Model Name	830L
Brand Color	Yellow
LED Indicators	No
Operating Temperature	(1) Range : -40 degree C to 150 degree C , Resolution : 1 degree C , +-(1.0% + 4) \|\| Range : 150 degree C to 1370 degree C , Resolution : 1 degree C , Accuracy : +-(1.5% + 15)
Audible Continuity Test	Yes
Buttons	3
Display Size	15mm high LCD Display.
Data Freeze	Yes
Autoranging	Yes
Reading Storage	Yes
Backlight	Yes
PC Connectivity	No

Additional Features

Technology Used

Resistance Circuit Testers

Other Features

1. Compact Design & Multi-function - This is a compact & handy device with function of date hold, low voltage symbol display, backlight function, overload protection and on-off measurement, 2. Widely Used - Used for commercial setting as well as automotive or household electrical problem testing, including tests for AC/DC voltage, DC current, resistance, frequency; test diodes transistors & temperature and more, 3. Large Backlit LCD Screen Display - Auto polarity display, big screen, full visual, easy to read, blue backlit gives a clear reading when using in weak light environment. To save power, it will automatically turn off after 15 seconds, 4. Protective Rubber Sleeve & Stand – Include a rubber protective cover and a stand. The cover made of high quality rubber which is strong, anti-drop, shockproof and anti-shake. Built-in support stand for hand free use, 5. Note: The digital multimeter cannot be used to test AC current and capacitance

Dimensions

Width	70 mm
Height	140 mm
Depth	34 mm
Weight	240 g
Other Dimensions	140 × 70 × 34mm

Functions

DC Current	200A/2mA/20mA/200mA/10A±(1.0%)
AC Voltage	200V-600V ±1.0%
DC Voltage	200mV--2-20-200-600V ±0.5%
Resistance	200/2k/20k/200/2M±(1.0%)
Capacitance	The rotary switch enables switching of electrical values and ranges ,of the multimeter,on XL830L works accurately and reliably.
Other Functions	1. Overload Protection & Audible Continuity ,Use the Ptc Protection Circuit for Resistance and Frequency Measurement; Overload & Short-Circuit Protection on All Ranges to Ensure Long-Term Service Life. designed to Safely and Accurately Troubleshoot a Variety of Automotive and Household Electrical .Audible Continuity Sensor Checks That the Circuit or Wires Conduct Electricity. Safe and Reliable Guarantee, Iec- 1010 Concerning Electronice Measuring Instruments with an Overvoltage Category(cat Ii and Pollution 2).good Protective Sleeve Made of Non-Slip Soft Plastic for Standing Up Any Drop Protection. Full Featured, Accurately Test Ac/dc Voltage, Dc Current, Ampere, Diode Assembly, Low Battery Voltage Indication, Transistor Hfe, Resistance, Continuity Check Etc. Data Hold, 2. Xl830l Pocket Digital Multimeter Mini Voltage Tester Home Measuring Tools Multi-Tester Test Dc Current, Resistance, Continuity, Frequency Backlight Lcd Display with Battery, Multimeter Probe

Power Features

Battery Type	9V
Number of Batteries	1
Other Power Features	1. OVERLOAD PROTECTION: 500mA/250V fuse (10A range unfused) , MEASURING VOLTAGE DROP : 200mV, 2. Diode assembly test/Transistor HFE test.Continuity test with buzzer sound in circuit – it is a very useful feature for test your circuit., 3. Adjustable accuracy for DC voltage -If you have an another accurate multimeter can make calibration of XL830L. Multimeter is fitted with stands that makes work easier.It has a nice backlit display. lighting can turn a small button on the right side below the display., 4. It is equipped with the Hold button for remembering values.It has the yellow anti-shock plastic cover.Have overload protection , but not recommended test.
