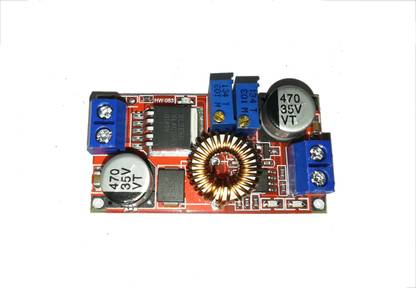

Diycart XL4015 Step-Down DC Buck Module with CV/CC Control Electronic Components Electronic Hobby Kit

This is high performance DC to DC Step Down Adjustable Power Supply Module. Based on Newly developed LM2596S Wide range Switching Regulator. Size: Approx. 43 x 20 x 14 mm Color: As the picture show Full load Temperature rise: 40 Load Regulation: ± 0.5% Voltage Regulation: ± 0.5% Dynamic Response speed: 5% 200uS Input voltage:4.50-40V Output voltage:1.50-35V(Adjustable) Output current: Rated current is 2A,maximum 3A(Additional heat sink is required) Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency) Switching Frequency: 150KHz Rectifier: Non-Synchronous Rectification Module Properties: Non-isolated step-down module (buck) Short Circuit Protection: Current limiting, since the recovery Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
