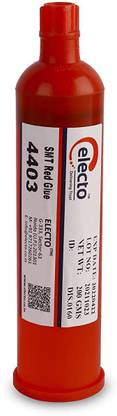

electo 4403 SMT Red Glue 200gms Liquid Metal Based Thermal Paste (200 g 200 W/mK)
Price: Not Available
Currently Unavailable
Highlights
Red Glue
Description
"Electo 4403 one component, fast curing epoxy adhesive. Used for bonding and fixing SMD components on printed circuit boards. The fast curing properties make it particularly suitable for SMT production requirements. Very low hygroscopicity allows the glue to be exposed to the air for a long time without affecting its dispersibility or void formation after curing. The Red / SMT Glue is stored in refrigerated conditions as described. Stored products must return to the ambient temperature before use. To reach room temperature of 25 Degree C It takes approximately 2-4 Hours for a 30 ml pack and around 4-6 hours for 200-300 ml bottles. Precautions? In order to avoid contamination of unused or partially used glue, never refill to the original packaging Exposure of the glue to air in normal room conditions will make it prone to absorb water from the ambient air and effects the performance. While printing on stencil, do not put the printed circuit board in the air for too long. The patch should be cured as soon as possible. If conditions permit, the air humidity should be controlled. Never heat the glue to bring to room temperature.
Read More
Specifications
In The Box
1
General
Brand
electo
Model Number
KSS-008
Model Name
4403 SMT Red Glue 200gms
Type
Liquid Metal Based
Quantity
200 g
Viscosity
200 Pa-s
Thermal Conductivity
200 W/mK
Composition
SMD components on printed circuit boards
Paste Color
RED
Net Quantity
200 g
