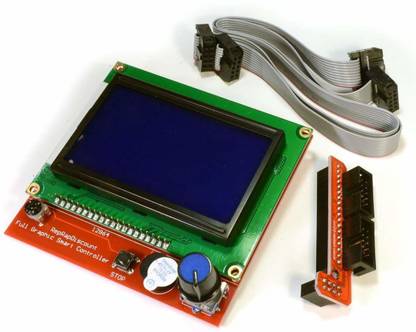

Electrobot 12864 128×64 V2.0 5V Full Graphic Smart Controller LCD Display for RAMPS 1.4 RepRap 3D Printer Electronic Components Electronic Hobby Kit

This is a big, bold, beautiful blue lcd with white back-lit pixels. It is also well known for its wide use in 3d printers, an extension accessory of ramps. If you want to add some visual output to your arduino projects, you'll need a display. This lcd is the graphical upgrade to those popular 16—2 lcds but allows full graphical control. In addition to writing text, this graphic lcd series allows the user to draw lines, circles, and boxes, set or redefine individual pixels, clear specific blocks of the display, backlight control, and adjustment of the baud rate. The lcd 12864 (128—64) graphic green color backlight lcd display module has its pins which are documented on the back of the lcd to assist in wiring it up. It is very easy to interface this lcd with ramps controller of the 3d printer. The lcd 12864 (128—64) graphic green color backlight lcd display module is also compatible with copiers, fax machines, laser printers, industrial test equipment, networking equipment, etc. Specification: number of dots - 128 —64 dots operating power - vcc 5v type - cob (chip on board) mcu I/f - 8-bit parallel or serial backlight - led outline dimension - 78.0 (w) —70.0 (h) —14.3 (t) mm view area - 62.0(w) —44.0(h) mm active area - 56.3(w) —38.38(h) mm dot size - 0.42(w) —0.58(h) mm dot pitch - 0.44(w) —0.60(h) mm lcd type - stn negative, blue, transmissive (in lcd production, it will occur slightly color difference. We can only guarantee the same color in the same batch.) view direction - 6 o'clock display color - yellow green / blue package includes: 1 x lcd 12864 (128—64) graphic green color backlight lcd display module.
