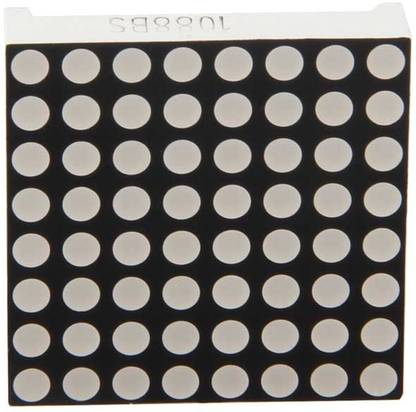

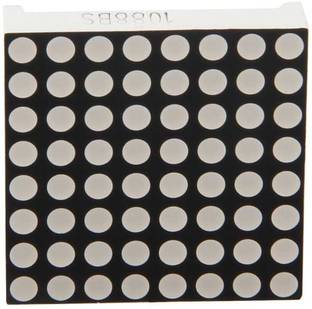

Electrobot 8 x 8 Dot Matrix Common Anode LED Display - Black + White For Arduino, RPi DIY Projects Display Lights Electronic Hobby Kit

Display Soldering Conditions: The recommended conditions for soldering are as follows Because the component is made with epoxy resin, the units are susceptible to heat. Therefore, the preheating and soldering temperatures should be kept as low as possible to avoid damage. 1. Manual Soldering Conditions(with 1.5mm Iron tip ) Iron Tip Temperature: 350°C Max, Time: 3s Max Position: The iron should be situated at least 2mm away from the root of the leads. 2. Through the Wave Soldering Conditions Wave Soldering Profile For Lead-free Through-hole LED Specifications: Model: 1088BS Color: Black + White Material: Semiconductor + PVB 8 x 8 dot matrix, 16 pin, red color, display common anode Operating temperature: -35 ~ 85ºC Storage temperature: -35 ~ 85ºC Forward current (TA=25 ºC): 30 mA per seg Peak forward current (TA=25 ºC): 120 mA per seg Reverse voltage (TA=25 ºC): 5 V per seg Power consumption (TA=25 ºC): 80 mW per seg Wavelength at peak emission: 635 nm Spectral bandwidth at 50%: 20 nm Forward voltage: (min) 1.8V & (max) 2.4 V Reverse current: (Max.) 20 µA Dimensions: (3.2cm x 3.2cm x 1.5 cm) Weight: (35 g) Applications: Digital readout display Elevator Audio epuipment
