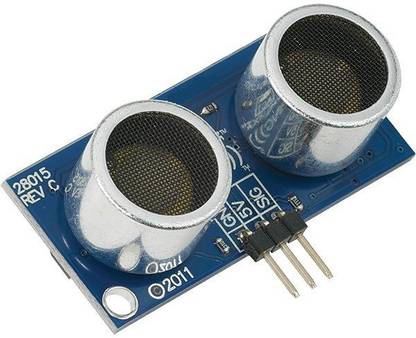

Electrobot HC-SR04 Ultrasonic Distance Sensor Module Electronic Components Electronic Hobby Kit

Electrobot HC-SR04 Ultrasonic Distance Sensor Module Electronic Components Electronic Hobby Kit

Share

Electrobot HC-SR04 Ultrasonic Distance Sensor Module Electronic Components Electronic Hobby Kit

4
60 Ratings & 7 Reviews
₹193
349
44% off
i
Available offers
  • Bank OfferFlat ₹50 off on Flipkart Bajaj Finserv Insta EMI Card. Min Booking Amount: ₹2,500
    T&C
  • Bank Offer10% off up to ₹1,500 on BOBCARD EMI Transactions, Min Txn Value: ₹5,000
    T&C
  • Bank Offer5% cashback on Axis Bank Flipkart Debit Card up to ₹750
    T&C
  • Bank Offer5% cashback on Flipkart Axis Bank Credit Card upto ₹4,000 per statement quarter
    T&C
  • Delivery
    Check
    Enter pincode
      Delivery by16 Jan, Friday
      ?
    View Details
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Epoxy
    • Weight: 20
    Services
    • Cash on Delivery available
      ?
    Seller
    ElectrobotOfficial
    3.8
    • 7 Days Return Policy
      ?
  • See other sellers
  • Description
    Electrobot HC-SR04 Ultrasonic Sensor is a device that can measure the distance to an object by using sound waves. It measures distance by sending out a sound wave at a specific frequency and listening for that sound wave to bounce back. By recording the elapsed time between the sound wave being generated and the sound wave bouncing back, it is possible to calculate the distance between the sonar sensor and the object. Ultrasonic Sensor HC-SR04 is great for all kind of projects that need distance measurements, avoiding obstacles as examples. HC-SR04 provides 2cm-400cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules include ultrasonic transmitters, receiver and control circuit. Technical Specification: Power Supply :+5V DC Quiescent Current : 3mA Working Current: < 5mA Effectual Angle: <15° Ranging Distance : 2cm - 300 cm/1? - 10ft Resolution : 0.3 cm Measuring Angle: 30 degree Trigger Input Pulse width: 10uS Dimension: 45mm x 20mm x 15mm
    Read More
    Specifications
    In The Box
    • 1 x HC-SR04 Ultrasonic Sensor
    General
    Brand
    • Electrobot
    Model Number
    • HC-SR04 Ultrasonic Distance Sensor Module
    Skillset
    • Creativity & Imagination, Object Recognition, Curiosity Building, Analysis & Critical Thinking, Sensory Development, General Knowledge, Motor Skills
    Type
    • Electronic Components
    Minimum Age
    • 4
    ROHS Complaint
    • Yes
    Material
    • Epoxy
    Age Group
    • 4-5 Years
    Key Features
    • Ultrasonic HC-SR04 Distance Measuring Transducer Sensor., HC-SR04 consists of ultrasonic transmitter, receiver, and control circuit., When trigged it sends out a series of 40KHz ultrasonic pulses and receives echo from an object., The distance between the unit and the object is calculated by measuring the traveling time of sound and output it as the width of a TTL pulse., Power supply: 5V DC; quiescent current: less than 2mA; effectual angle: less than 15°; distance: 2cm~500cm; resolution: 0.3 cm
    Dimensions
    Width
    • 2 cm
    Height
    • 1.5 cm
    Weight
    • 20
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • NA
    Battery Size
    • NA
    Power Source
    • DC
    Other Power Features
    • 5V DC
    Ratings & Reviews
    4
    60 Ratings &
    7 Reviews
    • 5
    • 4
    • 3
    • 2
    • 1
    • 34
    • 11
    • 4
    • 5
    • 6
    5

    Just wow!

    quality wis good
    READ MORE

    Flipkart Customer

    Certified Buyer, Mubarakpur

    Dec, 2019

    12
    2
    Report Abuse
    5

    Must buy!

    nice
    READ MORE

    Flipkart Customer

    Certified Buyer, Jajapur

    Dec, 2019

    2
    1
    Report Abuse
    5

    Brilliant

    Nice products
    READ MORE

    Paras agarwal

    Certified Buyer, Kotputli

    Jul, 2023

    0
    0
    Report Abuse
    4

    Value-for-money

    Received the product and it works as expected.
    READ MORE

    Vipin Sharma

    Certified Buyer, Pune

    May, 2023

    0
    0
    Report Abuse
    1

    Waste of money!

    Damage product
    READ MORE

    Flipkart Customer

    Certified Buyer, Varanasi District

    Jun, 2021

    0
    2
    Report Abuse
    4

    Very Good

    Working properly.nice product.nice package 🤗👍
    READ MORE

    Flipkart Customer

    Certified Buyer, Ramanathapuram District

    May, 2021

    0
    0
    Report Abuse
    5

    Brilliant

    Very good product
    READ MORE

    Ajay Pippal

    Certified Buyer, Morena

    Jan, 2021

    0
    0
    Report Abuse
    +
    All 7 reviews
    Questions and Answers
    Q:which sensor is this
    A:Ultrasonic sensor
    Hash Electrolabs
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Please tell me the plus mainus of this sensor... with their name
    A:it is mentiond on sensor already
    ROBOMALLS
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Is that a three pin or a four pin sensor??
    A:it has 4 pins ... Vcc ,Trig , Echo and Ground pin
    Anonymous
    Certified Buyer
    0
    0
    Report Abuse
    Q:can i record someones voice by this ?
    A:No you can't... it works on pulse echo technic to measure the distance between an object and itself. you better go for a mic to record voice.
    Johnson Selva J V
    Certified Buyer
    0
    0
    Report Abuse
    Read other answers
    Q:is jumping wire connect properly wiy sensor
    A:Yes
    Hash Electrolabs
    Flipkart Seller
    0
    0
    Report Abuse
