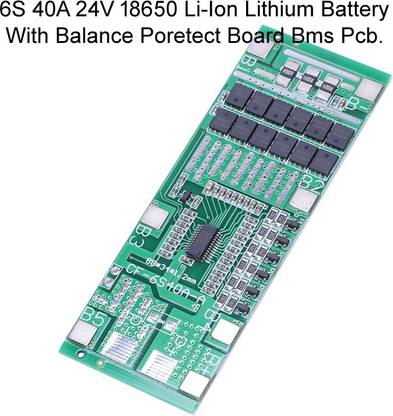

electrolight 6S 40A 24V 18650 Li-Ion Lithium Battery With Balance Poretect Board Bms Pcb. Micro Controller Board Electronic Hobby Kit

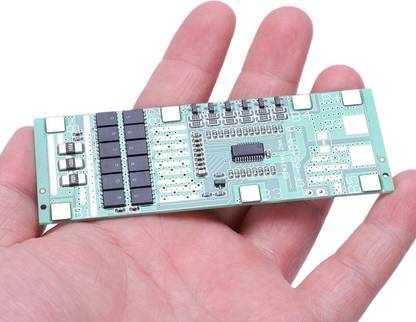

Li-Ion Lithium Battery Poretect Board Solar Lighting Bms Pcb With Balance For Ebike Scooter 24V 6S 40A 18650 This product is 6 string 24V 6-Cell lithium battery power protection board Split-mouth 40A discharge current With heat sink Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection Color: green Material: PCB Maximum discharge current: 40A Instantaneous discharge current: 70A Charging voltage: 25.5V Maximum charging current: 40A Overcharge detection voltage: 4.25±0.025V Overcharge protection delay: 1.0±0.5S Overcharge release voltage: 4.15±0.05V Battery balance detection voltage: 4.125±0.025V Battery balance release voltage: 4.125±0.05V Battery balance current: 41±5mA Over discharge detection voltage: 2.7 ± 0.1V Over discharge detection delay: 1.0±0.5S Over discharge release voltage: 3.0±0.1V Over current detection voltage: 100mV Over current detection delay: 1±0.3S Over current protection current: 75±5A Over current protection release condition: disconnect load Short circuit protection condition: external load short circuit Short circuit detection delay: 250uS Short circuit protection release condition: disconnect load Main circuit conduction internal resistance: ?20m? Working current: ?40uA Temperature range: -30/+80°C Size: 88*34*2.8mm
