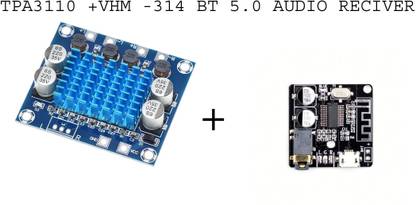

electrolight TPA3110 Audio Power Amplifier 30W+30W 2.0 + Audio Receiver board BT 5.0 Radio Electronic Hobby Kit

TPA3110 30W+30W 2.0 Channel Digital Stereo Audio Power Amplifier Board DC 8-26V 3A Parameter: Chip: TPA3110 Condition:XH-A232 Application: Computer Supply Voltage:DC8V-26V Dissipation Power:30W+30W Size:53*45*14mm Channels:2 (2.0) Output impedance:4-8ohm Current: more than 3A Signal to noise ratio: 100db Weight:21g VHM-314 BT Audio Receiver board BT 5.0 mp3 lossless decoder board Wireless Stereo Music Module 3.7-5V. Description: This product uses Bluetooth 5.0 main control chip, JL6925A, true stereo 5.0 chip. Good sound quality Support automatic connection function, support WAV+APE+FLAC+MP3 lossless decoding, stereo output. Product weight: 6 grams Parameter: Power Supply :3.7-5V SNR :90dB THD+N :-70dB Crosstalk :-86dB DNR :91dB Support Profile :A2DP/AVCTP/AVDTP/AVRCP/HFP LOS :>15m Size:30mm*30mm Specifications: nterface detailed description USB power supply: Universal Micro USB 5V power supply 3.7-5V power supply pad: Realize external 3.7-5V lithium battery power supply modification LED indicator: blue light in blue tooth mode is on 3.5mm stereo audio interface: standard 3.5mm interface, output stereo sound source, can insert earphones, connect power amplifier and other equipment Pairing instructions: Connect the power, the blue indicator light flashes, and enter the Bluetooth mode; when you hear the voice announcement "The Bluetooth device is ready to pair", it means you enter the Bluetooth mode and wait for pairing; after the mobile phone Bluetooth searches for "JH-BT", Click Connect. When you hear the voice announcement "The Bluetooth device is connected successfully", It means that the decoder board is successfully connected to the mobile phone, and the blue indicator light is on, and the music can be played, and the blue indicator light flashes
