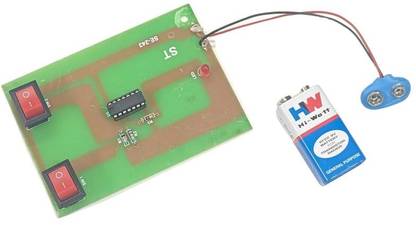

ERHIndia Logic EX-OR Gate Circuit IC 7486 Based Science Project Working Educational Electronic Hobby Kit

In digital electronics, there is a specially designed logic gate named, XOR gate, which is used in digital circuits to perform modulo sum. It is also referred to as Exclusive OR gate or Ex-OR gate. The XOR gate can take only two inputs at a time and give an output. The output of the XOR gate is high or logic 1 only when its two inputs are dissimilar.
