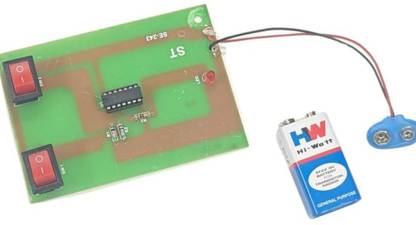

Other Power Features | - AND gate can accept two or more than two input values at a time. When all of the inputs are logic 1, the output of this gate is logic 1., For two-input AND gate, the Boolean expression is given by, (Z=A.B).Where, A and B are inputs to the AND gate, while Z denotes the output of the AND gate. We can extend this expression to any number of input variables, such as, Z=A.B.C.D…, Explore the fascinating world of digital circuits with hands-on experiments using real logic gates! (e.g., AND, OR, NOT), Learn by Doing: Build working circuits and discover how logic gates process information, the foundation of all modern computers., STEM Focused: Develop critical thinking, problem-solving, and engineering skills through engaging science, technology, engineering, and math (STEM) activities.
|
