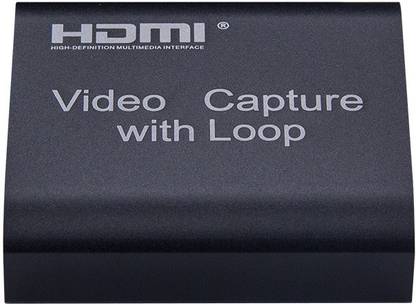

Etzin HDMI to USB 3.0 with loop out Video Capture Card Output support VLC OBS AMCAP Media Streaming Device  (Black)

he video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc. * Support HDMI loop out; * Support input max resolution 4K; * Support output max resolution 1080P; * Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution); * Support most acquisition software, such as VLC,OBS ,Amcap, etc; * Support Windows,Android and MacOS; * Conform to USB Video and UVC standard; * Conform to USB Audio UAC standard; * Compact and portable. Specifications HDMI resolution Max input can be 4K Support video format 8/10/12bit Deep color Video output format YUV,JPEG Video output resolution Max output can be 1080P Support audio format L-PCM Input cable distance ?15m,AWG26 HDMI standard cable Max working current 0.7A/5VDC Operating Temperature range (-10 to +55?) Dimension (L x W x H) 59x56x19 (mm) Weight 52g 4K V1.4 HDMI Video Capture With Loop out HDMI video capture card Connection and Operation 1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable. 2. Connect the display device to the HDMI output of the video capture with one HDMI cable. 3. Connect PC USB port to the USB output of the video capture with one USB cable. 4: Operation steps for USB video capture(OBS): Open the software?Choose sources of “Video capture Device” ?Set the size of image?Choose “Studio Mode”(double window) ?Choose “Start Recording”. Note: Computer hardware configuration requirements CPU: PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above Run memory: 4G RAM Package include: 1. Video capture 1PCS 2. user manual 1PCS 3. USB cable male to male 1PCS 4. Micro USB cable 1PCS
