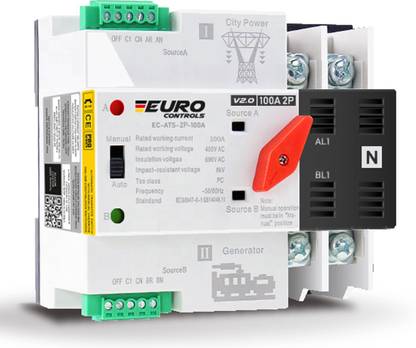

    Euro Controls ATS 2 POLE 100A v2 Auto Transfer Switch Dual Source - Ultra Fast switching - Control signal - V2 Wire Connector
    Get notified when this item comes back in stock.
    Home
    Building Materials and Supplies
    Electrical Hardware
    Wire Connectors
    Euro Controls Wire Connectors

    Euro Controls ATS 2 POLE 100A v2 Auto Transfer Switch Dual Source - Ultra Fast switching - Control signal - V2 Wire Connector (White, Pack of 1)

    Share

    Euro Controls ATS 2 POLE 100A v2 Auto Transfer Switch Dual Source - Ultra Fast switching - Control signal - V2 Wire Connector  (White, Pack of 1)

    3.9
    31 Ratings & 2 Reviews
    Special price
    ₹3,126
    ₹7,980
    60% off
    i
    Sold Out
    This item is currently out of stock
    Warranty
    Warranty on all manufacturing defects , Any physical damage misuse overload wrong wiring or short circuit voids warranty
    Highlights
    • Taiwanese Excellece
    • Auto Transfer Switch
    • 100 Amps Switch
    • Single phase 2pole
    • Working volt 400V
    • Short Circuit 50kA
    • Manual Override
    • Instantaneous Switch
    • Switch Time 0.05s
    • Silver Alloy Contacts
    • Signaling Controls
    • Flame Retardant
    • Ultra High Precision
    • Continuous Power
    • Stable Supply
    • Max Voltage 600v
    • Din Rail Mount
    • DB box Mounting
    • GB Standards
    • Simple-Reliable
    Seller
    Ladder Terminal
    4.2
    • 7 Days Return Policy
      ?
  • See other sellers
    • Description
    vERSION 2.0 Euro Controls Presents to you Dual Power New Developed Micro Industrial / Domestic 2 Pole 100A Automatic Transfer Switch. The Switch is designed to instantaneously switch between Primary & Backup Source . The Device has microprocessor electronic intelligence built to switch instantaneously to maintain stable interrupted power supply . Automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternating current rated 400V 100A . Compact in structure, reliable in transfer, convenient in installation and maintenance, and has long life expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually. Din rail & screw mount installation.ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment. The Switch is equipped with control signaling terminals.
    Read More
    Specifications
    Warranty
    Warranty Summary
    • Warranty on all manufacturing defects , Any physical damage misuse overload wrong wiring or short circuit voids warranty
    Service Type
    • Repair / Replace
    Covered in Warranty
    • Manufacturing Defects
    Not Covered in Warranty
    • Any physical damage misuse overload wrong wiring or short circuit voids warranrt
    Connector Features
    Maximum Current Rating
    • 100 A
    Maximum Voltage Rating
    • 400 V
    Operating Temperature
    • 323 K
    Insulation Thickness
    • 20 mm
    Compatible Wire Size
    • 20 sqmm
    Installation Type
    • Din Rail mount, Screw fix
    Locking Device
    • Yes
    Other Connector Features
    • Silver Alloy Contacts, Manual Override
    In The Box
    Pack of
    • 1
    Sales Package
    • 1 ATS Switch, 1 User Manaul
    General
    Brand
    • Euro Controls
    Model Number
    • ATS 2 POLE 100A v2
    Type
    • Auto Transfer Switch Dual Source - Ultra Fast switching - Control signal - V2
    Material
    • Polypropylene
    Color
    • White
    Suitable For
    • Industrial Use, Domestic Use
    Waterproof
    • No
    Corrosion Proof
    • Yes
    Net Quantity
    • 1
    Additional Features
    Certifications
    • GB/T 14048.11
    Flameproof
    • Yes
    Key Features
    • Instantaneous Switching Between two power sources, Source A is the primary power source , high priority is given to primary sourc, Motorized ultra Fast Switching , Switching time less than 0.05 seconds, Smooth Continuous stable Power can be maintained, Heavy Duty Silver Alloy Contacts, Signaling & Control Terminals available, Din Rail Mounting & Screw Mounting
    Other Features
    • Screw & Din mount, Manual Override with Selector
    Dimensions
    Width
    • 110 mm
    Height
    • 80 mm
    Depth
    • 100 mm
    Weight
    • 500 g
