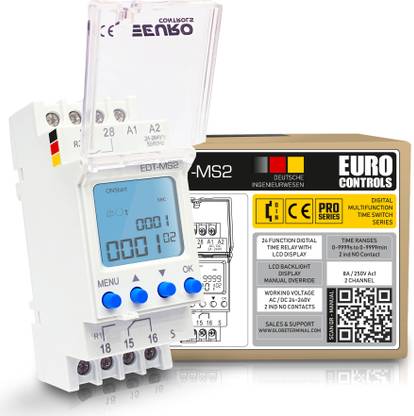

Euro Controls EDT-MS2 German - 2 Channel Multifunction Timer - Range 0-9999s | 0-9999min - 240V AC / DC - 24 modes Delay/Cycle/Pulse/Impulse/Flasher modes - Trigger function - 2 c/o - Din mount Programmable Electronic Timer Switch (White)
Share
Euro Controls EDT-MS2 German - 2 Channel Multifunction Timer - Range 0-9999s | 0-9999min - 240V AC / DC - 24 modes Delay/Cycle/Pulse/Impulse/Flasher modes - Trigger function - 2 c/o - Din mount Programmable Electronic Timer Switch (White)
2.1
7 Ratings & 0 Reviews₹1,838
₹2,980
38% off
Available offers
T&C
T&C
T&C
T&C
Delivery
Check
Enter pincode
Delivery by1 Aug, Friday
?
if ordered before 8:59 AM
View Details
Highlights
- German Excellence
- Multifunction Timer
- Two channel Timer
- 0-9999s | 0-9999min
- 24-240 V AC or DC
- LCD Backlight
- 24 modes
- ON - OFF Delay Modes
- Pulse / Impulse Modes
- Cyclic / Flasher Modes
- Several Other Modes
- Works with AC / DC
- Signal & Non signal
- Triggerable
- With External Input
- Simple-Reliable
- Worlds Best
- Industrial Automation
Services
- Cash on Delivery available?
Seller
Description
24 Functional Modes : 1. SWITCH ON DELAY 2.SWITCH OFF DELAY 3. FLASHER STARTING WITH OFF 4. FLASHER STARTING WITH ON 5. IMPULSE GENERATOR DELAY 0,5 sec.6. TIME IMPULSE RELEASED BY RISING EDGE 7. TIME IMPULSE RELEASED BY FALLING EDGE 8. SWITCH ON/OFF DELAY 9. BISTABLE RELAY WITH TIME LIMIT 10. TIME IMPULSE RELEASED BY RISING EDGE WITH SWITCH OFF DELAY (retriggerable) 11. TIME IMPULSE RELEASED BY RISING EDGE WITH SWITCH OFF DELAY (non-retriggerable) 12. SWITCH ON DELAY RELEASED BY IMPULSE 13. PERMANENT SWITCH ON MODE 14. PERMANENT SWITCH OFF MODE 15. SWITCH ON DELAY 16. SWITCH OFF DELAY 17. FLASHER STARTING WITH OFF 18. FLASHER STARTING WITH OFF 19. SWITCH ON/OFF DELAY- (retriggerable) 20. SWITCH ON/OFF DELAY- (non-retriggerable) 21. IMPULSE GENERATION WITH AN ALTERNATE TIME DURATION 22. SWITCH OFF DELAY RELEASED BY FALLING EDGE 23. TIME IMPULSE RELEASED BY IMPULSE WITH SPECIFIC TIME DURATION 24. IMPULSE RELEASED BY FALLING EDGE
Read More
Specifications
General
| Brand |
|
| Model Number |
|
| Type |
|
| Color |
|
| Suitable For |
|
| Number of Programs Per Day |
|
Power Features
| Power Requirement |
|
| Power Consumption |
|
| Rechargeable Battery |
|
Additional Features
| Other Features |
|
Dimensions
| Height |
|
| Width |
|
| Weight |
|
Warranty
| Service Type |
|
| Covered in Warranty |
|
| Not Covered in Warranty |
|
Ratings & Reviews
2.1
★
7 Ratings &
0 Reviews
- 5★
- 4★
- 3★
- 2★
- 1★
- 1
- 1
- 0
- 1
- 4
Have you used this product? Be the first to review!
Questions and Answers
Q:Can i use it fir dc current 30 volts 10 ampere dc to stop solar pannel current at 12 am and again connect at 2 pm.
A:This timer cannot handle high loads directly, especially DC loads. You can use it with a suitable auxilary relay which can handle DC loads
Ronald Surrao
Certified Buyer4
2
Report Abuse
Q:Can it be used for 1.5 HP water pump ?
A:used for 800 wat street liye,
Anonymous
Certified Buyer1
1
Report Abuse
Q:Can use half hp water pump?
A:this device can use for street light timer for housing society I used for same.
Anonymous
Certified Buyer2
3
Report Abuse
Q:Will this take the load of 30 amp per channel at a time
A:yes
Rajasekhar thumapala
Certified Buyer0
0
Report Abuse
Q:will it work if different meter connection are connected to this one timer
A:yes
Flipkart Customer
Certified Buyer0
1
Report Abuse
Q:It can use in 4000 watt bulbs?
A:Yes with an auxilary contactor or suitable relay.
Ronald Surrao
Certified Buyer0
0
Report Abuse
Q:Can use this for 2 hp motor ?
A:No. It is AC1 rated. It means it can be used on resistive loads upto 16A & not inductive loads like motors.
Ronald Surrao
Certified Buyer0
0
Report Abuse
Q:Does it automatically turn on with Power failure when the power is back?
A:yes, on automatically when comes power
Anonymous
Certified Buyer3
1
Report Abuse
Q:Can we use it for 2hp motor
A:Yes, I guess so but consult the electrician
Anonymous
Certified Buyer1
0
Report Abuse
Q:Can I trigger 20 on off program in a single day
A:Yes sure
Anonymous
Certified Buyer0
0
Report Abuse
