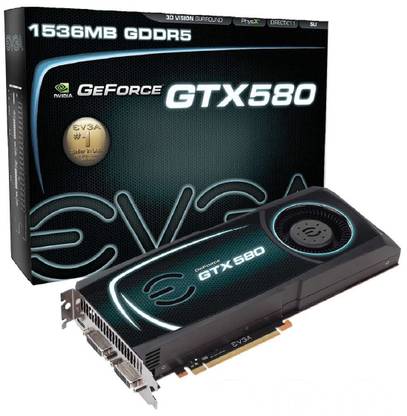

EVGA GeForce GTX 580 GDDR5 1.5 GB NVIDIA Chipset 384 bit 772 MHz Graphics Card

Price: Not Available

Currently Unavailable

Warranty

The product will not suffer, in material or workmanship, from any defect that adversely affects the performance of the product. Products purchased ON or After November 1, 2009 MUST be registered within 30 days of the ORIGINAL DATE OF PURCHASE to receive EVGA's Free Extended Warranty. All products not registered within 30 days will ONLY receive a 1 year limited warranty. Limited 3 Year - All products registered within 30 days of the original purchase date will receive a 3 year warranty.

Highlights

772 MHzClock Speed
Chipset: NVIDIA
BUS Standard: PCI Express 2.0
Graphics Engine: GeForce GTX 580
Memory Interface 384 bit

Important Note

The packaging of this product may vary from what is shown in the image.

Specifications

General

Brand	EVGA
Graphics Engine	NVIDIA GeForce GTX 580
GPU Clock	772 MHz
Shader	Shader Version 5 with Clock speed of 1544 MHz
Processors and Cores	512 Shader Processors, 512 CUDA Cores
GPU Manufacturing Process	40 nm
Bus Standard	PCI Express 2.0
Cooling and Heatsink	Fan: 1
Model ID	GeForce GTX 580
Power Supply Required	600 W

Memory

Memory	384-bit, 1.5 GB GDDR5 Memory
Memory Bandwidth	192.4 GB/sec

Display

Maximum Resolution

2560 x 1600 (Digital), 2048 x 1536 (Analog)

Technologies Supported

Graphics Technologies Supported	Microsoft DirectX v11, Open GL Optimization v4.1, Yes support
3D Support	Yes support

Connectivity

DVI and HDMI Interface	2 x DVI Output Out, Yes x Dual Link DVI Out
Mini HDMI	1 x Mini HDMI Output
HD Content Support	HDCP Support

System Requirements

Supported OS	Windows 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64bit)
Other System Requirements	One 6-pin PCI Express power connector or two available hard disk power connectors and one 8-pin PCI Express power connector or two available 6-pin PCI Express power connector

Included Technologies

Software Included

EVGA Driver

Dimensions

Dimensions	111.15 x 266.7 mm
Weight	1400 g

Other Features

Additional Features

NVIDIA CUDA technology, NVIDIA PhysX technology, NVIDIA 3D Vision Surround Ready, NVIDIA PureVideo HD technology, 2-way NVIDIA SLI, 3-way NVIDIA SLI, 4-way NVIDIA SLI

Warranty

Warranty Type	Limited - Part and Labour are covered
Warranty Summary	The product will not suffer, in material or workmanship, from any defect that adversely affects the performance of the product. Products purchased ON or After November 1, 2009 MUST be registered within 30 days of the ORIGINAL DATE OF PURCHASE to receive EVGA's Free Extended Warranty. All products not registered within 30 days will ONLY receive a 1 year limited warranty. Limited 3 Year - All products registered within 30 days of the original purchase date will receive a 3 year warranty.
Not Covered in Warranty	Removal and or Defacing of Serial/Part number sticker(s) on any EVGA products will void all warranties. All products must be returned in the originally sold condition. Products received by EVGA for replacement that include 3rd-party attachments (CPU Heatsink Backplate, Memory chip heatsinks, etc) will be returned to the address on the package. There must be no physical damage to any component including the PCB, GPU/chipset, CPU Socket, or damage that is caused by: inadequate or improper repairs carried out by any person or entity which is not authorized by the manufacturer to perform warranty services on its behalf; negligence, accidents, modifications, defective installation or misuse and use of inappropriate spare parts; fire, immersion in liquid, lightning, earthquake, inadequate ventilation, Acts of God, incorrect application of main voltage howsoever arising, or any other cause beyond the control of EVGA; any other goods which can be used with the Product, but are not the Product itself; consumable or wearing items requiring replacement as part of normal service, including (but not limited to) dry cells and rechargeable batteries. The product must be returned to EVGA in the original factory configuration and condition. All aftermarket modification must be reversed before sending in the product for replacement.
Service Type	Carry in
Domestic Term	2 Years
