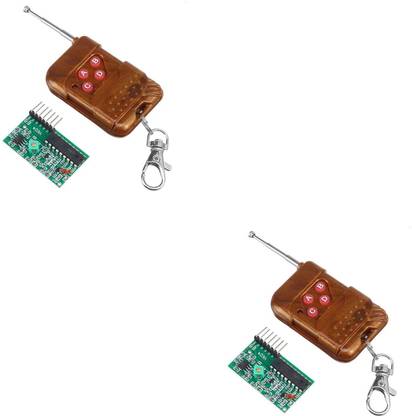

Flyrobo (2 pc) 4 Channel Wireless Four Button RF Remote Control Transce - Electronic Components Electronic Hobby Kit

Operating Voltage: 12V DC Operating current: 10mA at 12V. No. of Channels: 4 Transmission distance : 3 to 5 m Dimensions (LxWxH): receiver board- 4.1 x 2.2 x 0.7 (CM) Remote - 6.4x3.9x1.5 (CM) Operating mode: Non-Locking Transmitting frequency: 315Mhz The 4 Channel Wireless Four Button Remote Control Transmitter Receiver Module with Non-Locking mode can be composed of a fixed e four radio receiver circuits, remote control of four four-bit data output e corresponding to the module, you can easily make up a wireless remote control receiver circuit. They are widely applied in the majority of home electronics enthusiasts, industrial remote control electronic product design and development can be very good as a single-chip signal input source, especially for students and colleges electronic circuit design, the graduate design of the remote control circuit portion. These remote comes in different operating Mode: a Non-locking Mode, a Self-Locking Mode, and an Interlocking Mode (Product included comes in Non-Locking Mode) There are four buttons on the remote control and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3. Press the buttons to transmit signals, the corresponding data bit is output high. Pin Connection and Functions: VT output status indication D3 data output D2 data output D1 data output D0 data output 5V power supply positive GND power supply negative ANT connects the antenna terminal Features : Transmitter Remote control: Ener types: fixed e. Modulation mode: ASK (Amplitude Modulation). Deing receiver board: Receiver Operating voltage: DC 5V. Receiver sensitivity is: -98dB. Leg 7 bits: VT, D3, D2, D1, D0, +5V and GND. Package Includes : 1 x 4 Channel Wireless Four Button RF Remote Control Transceiver Module
