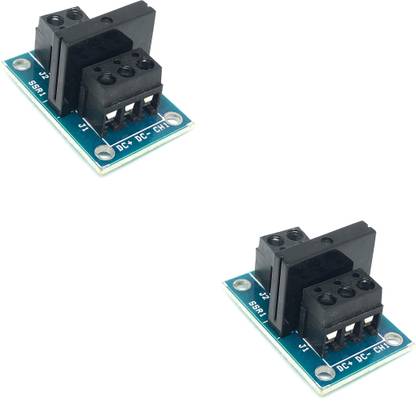

Flyrobo (2 pc) 5V 1 Channel SSR Relay Module (Solid State Relay Module) - Electronic Components Electronic Hobby Kit

Length: 2.5 cm Width: 3.4 cm Height : 2.5 cm Trigger Voltage: 5 V (DC) Trigger Current: 2 mA Switching Voltage(AC): 240V@2A Working Current: 12.5 mA This 5V 1 Channel SSR – Solid State Relay Module 240V 2A Output. SSR relay which can control up to 2A at 240VAC. This is a 1 Channel SSR relay module which has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed). Features: Compact size Totally silent operation Led indicator for each relay Fast switching speed Longer lifespan Inbuilt resistive fuse to protect from the excessive current drain Can be controlled directly by Programming Board or other microcontrollers Can switch AC from 100V to 240V at 2A (max.) Specification: Input rating Supply voltage: 5V Input switch voltage: 0V to 2.4V Input release voltage: 3.5V to 5V Output rating Rated load voltage: 100V to 240V Load current: 0.10A to 2A Surge current: 30A (60 Hz, 1 cycle) Operating temperature range: -30℃ to 80℃ Storage temperature: -30℃ to 100℃ Input section: DC+: Connect the positive pole of the power supply (powered by the relay voltage) DC-: Connected to the negative pole of the power supply CH: Relay module signal trigger terminal (low-level trigger is valid) Note: The power supply must be DC, and the voltage should match the voltage of the relay. Please be careful when working with a high voltage AC load, please do not operate with power on. This relay only works with AC load, if you use DC load, once the relay is turned on, it will always stay on. Due to the leakage current, we do not recommend you use this relay with low power appliances. Package includes: 1 x 5V 1 Channel SSR Relay Module
