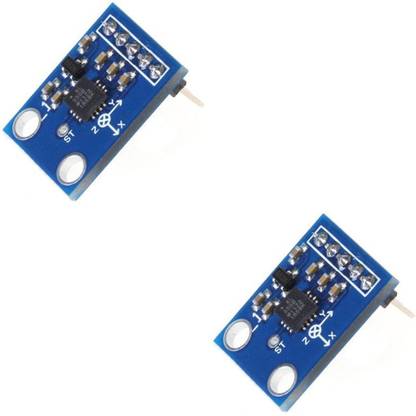

Flyrobo (2 pc) ADXL335 Module - 3 Axis Accelerometer - Analog Output - - Electronic Components Electronic Hobby Kit

Length: 2.1 cm Width: 1.6 cm Input Voltage: 3 ~ 6 V Height : 0.25 cm Operating Temperature Range: -40 to 90 °C Each Axis Bandwidth: 50Hz The ADXL335 is low power, a complete 3-axis accelerometer with signal conditioned voltage outputs. The ADXL335 Module is a 3-axis Analog Output Accelerometer measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an onboard voltage regulator and works at both 3.3V & 5V (3-5V). An accelerometer is an electro-mechanical device that will measure acceleration forces. These forces may be static, like the constant force of gravity pulling at your feet, or they could be dynamic – caused by moving or vibrating the accelerometer. Applications : FPV, RC, and Robots systems GPS navigation systems Impact recognition and logging Gaming and virtual reality input devices Motion-activated functions Intelligent power saving for handheld devices Vibration monitoring and compensation Features : Simple 5 pin interface (VCC, GND, Xout, Yout, Zout, Self Test) Needs no external components Easy to mount on General purpose PCB, Breadboards, and special PCBs High Sensitivity for small movements Fast Turn-On Time Integral Signal Conditioning with Low Pass Filter Robust Design, High Shocks Survivability Build-in ultra-low noise linear LDO voltage regulator Can be interfaced with 3.3V or 5V Microcontroller. All necessary Components are populated. Tap/Double Tap Detection -Fall Detection Analog output Built-in onboard filters, which reduce noise from the motor and other high current electronics Power LED Build in the Logic level converter for I2C Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V Low Voltage Operation: 5V Low Current Consumption: 500 μA Package Content: 1 x ADXL335 Module
