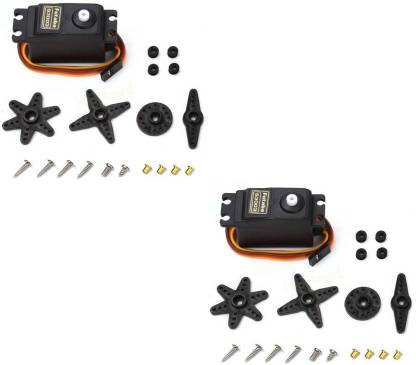

Flyrobo (2 pc) Futaba S3003 Servo Motor - - Electronic Components Electronic Hobby Kit

The Futaba Compatible S3003 Plastic Geared Servo Motor is a decent servo for every hobbyist and electronics student. The powerful motor is PWM controlled for easy interfacing. ​Features:​ Control System: +Pulse Width Control 1520usec Neutral Required Pulse: 3-5 Volt Peak to Peak Square Wave Operating Voltage: 4.8-6.0 Volts Operating Temperature Range: -20 to +60 Degree C Operating Speed (4.8V): 0.23sec/60 degrees at no load Operating Speed (6.0V): 0.19sec/60 degrees at no load Stall Torque (4.8V): 44 oz/in. (3.2kg.cm) Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm) Operating Angle: 45 Deg. one side pulse traveling 400usec Continuous Rotation Modifiable: Yes Direction: Counter Clockwise/Pulse Traveling 1520-1900usec Current Drain (4.8V): 7.2mA/idle Current Drain (6.0V): 8mA/idle Motor Type: 3 Pole Ferrite Potentiometer Drive: Indirect Drive Bearing Type: Plastic Bearing Gear Type: All Nylon Gears Connector Wire Length: 12" Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm) Weight: 1.3oz. (37.2g) Application: Futaba S3003 High torque Dual ball bearing Servo motors for robotics and industrial application, It provides 7Kgcm torque at 6V, Perfect Compatible with Hitec HS-311. Package Includes: 1 x Futaba S3003 Servo Motor 4 x Different types of plastic rotating attachment, mounting rubber ball, and screws.
